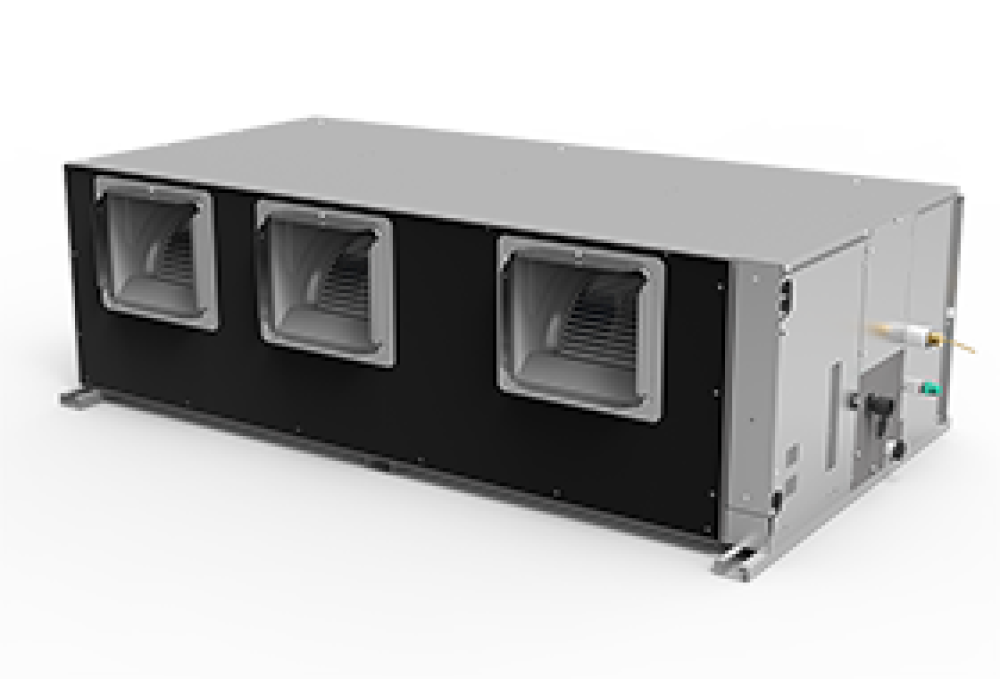

KAYSUN Amazon High Pressure Duct
Commercial
The Kaysun range of high-pressure duct system units is ideal for climate control in large spaces, as it provides high cooling capacity and available pressures of up to 300 Pa, along with high air flows. Thanks to the wide variety of outdoor units, it can be adapted to any type of installation in an optimal way.
- Quiet operation.
- Condensate pump as standard.
- Constant air flow technology.
- Standard height 580 mm.
- Available pressure up to 400 Pa.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|
| KPDUF-200 DN5.0 | 20 | 22,5 | A++ | 42 | R-410A/R-32 | 1f/230V | 10A / type C | 1300/580/900 |
| KPDUF-252 DN5.0 | 25,2 | 26 | A++ | 42 | R-410A/R-32 | 1f/230V | 10A / type C | 1300/580/900 |
| KPDUF-280 DN5.0 | 28 | 31,5 | A++ | 42 | R-410A/R-32 | 1f/230V | 10A / type C | 1300/580/900 |
| KPDUF-400 DN5.0 | 40 | 45 | A++ | 48 | R-410A/R-32 | 1f/230V | 16A / type C | 1850/580/900 |
| KPDUF-450 DN5.0 | 45 | 56 | A++ | 48 | R-410A/R-32 | 1f/230V | 16A / type C | 1850/580/900 |
| KPDUF-560 DN5.0 | 56 | 63 | A++ | 49 | R-410A/R-32 | 1f/230V | 16A / type C | 1850/580/900 |
Files
User manual
Manual EN, Mural-Bibloc - Aquantia Bibloc Wall-Mounted KHPMS-BI Pro.pdfManual EN, Bibloc-outdoor unit - Aquantia Bibloc Wall-Mounted KHPMS-BI Pro.pdf
Návod na obsluhu a inštaláciu CZ - nástenný ovládač KCTAQ-02.pdf
Manual EN - Wall Controller KCTAQ-02.pdf
Manual EN - High Pressure Duct.pdf
Návod na obsluhu a inštaláciu SK -KCT-04 SR.pdf
Manual EN, Wired Controller - KCT-04 SR.pdf
Product sheet
Product Sheet - Aquantia Bibloc Wall-Mounted KHPMS-BI Pro.pdfProduct Sheet - High Pressure Duct.pdf
Declaration of conformity
Declaration of Conformity - Aquantia Bibloc Wall-Mounted KHPMS-BI Pro.pdfDeclaration of Conformity - High Pressure Duct.pdf
