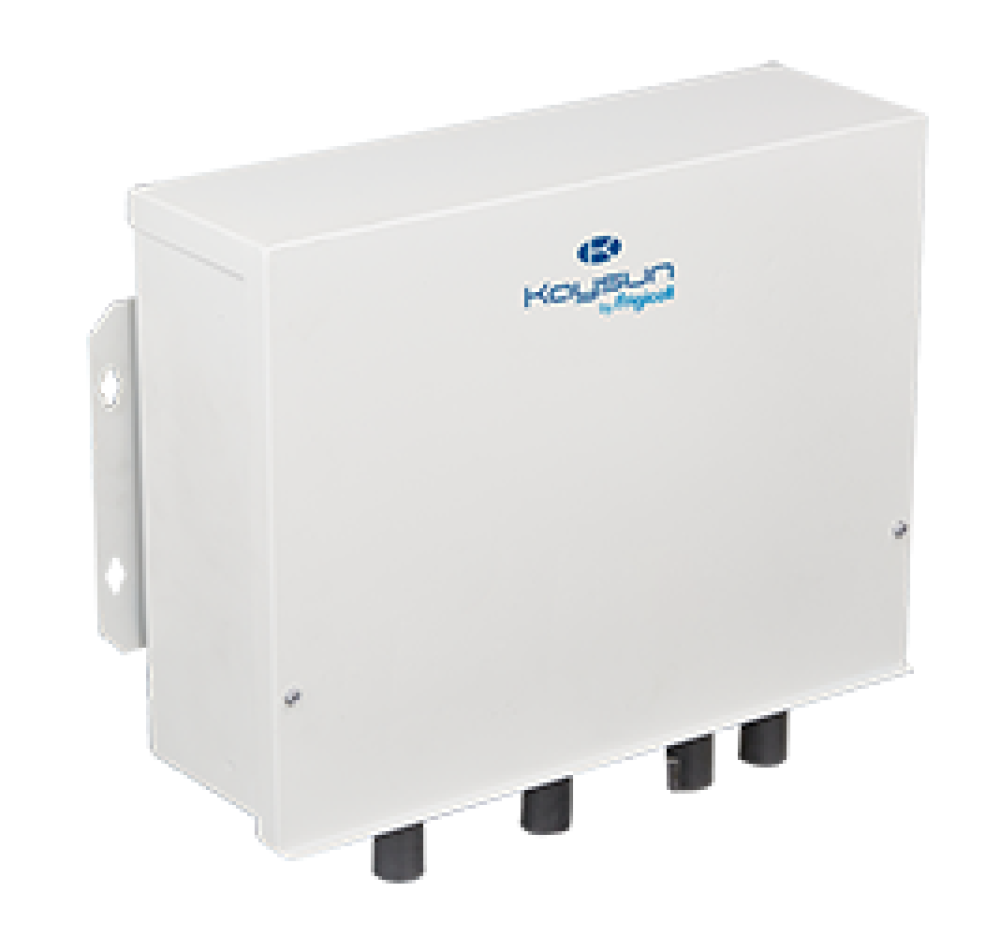

KAYSUN Amazon Kahu

Commercial

The KAHU can be used to connect Kaysun VRF outdoor units to direct expansion Air Handling Units, providing a solution tailored to the specific needs of each project. They serve as an addition to the Kaysun VRF in combination with all other indoor unit ranges.

Combinable up to 4 units.

Capacity from 1.8 kW to 56 kW.

Supports third-party DC control.

Compatible with S6 and S8 protocols.

Parameters

Type	Cooling Capacity (kW)	Energy Class	Refrigerant	Power Supply	Recommended circuit breaker	Net Weight (kg)	Dimensions mm (Width/Heigh/Depth)
KAHU-90.5	From 1,8 tp 9	A++	R-410A/R-32	1f/230V	6A / type C	6,2	479/384/134
KAHU-200.5	From 9 to 20	A++	R-410A/R-32	1f/230V	6A / type C	6,2	479/384/134
KAHU-360.5	From 20 to 36	A++	R-410A/R-32	1f/230V	6A / type C	6,4	479/384/134
KAHU-560.5	From 36 to 46	A++	R-410A/R-32	1f/230V	16A / type C	6,4	479/384/134

Files

User manual

Návod na obsluhu a inštaláciu SK - Aquantia Monobloc KHPS-MO Pro.pdf
Manual EN - Aquantia Monobloc KHPS-MO Pro.pdf
Manual EN - Wall Controller KCTAQ-02.pdf
Návod na obsluhu a inštaláciu CZ - nástenný ovládač KCTAQ-02.pdf
Manual EN - KAHU.pdf
Návod na obsluhu a inštaláciu SK - KAHU.pdf
Návod na obsluhu a inštaláciu SK -KCT-04 SR.pdf
Manual EN, Wired Controller - KCT-04 SR.pdf

Product sheet

Product Sheet - Aquantia Monobloc KHPS-MO Pro.pdf
Product Sheet - KAHU.pdf

Declaration of conformity

Declaration of Conformity - Aquantia Monobloc KHPS-MO Pro.pdf
Declaration of Conformity - KAHU.pdf
