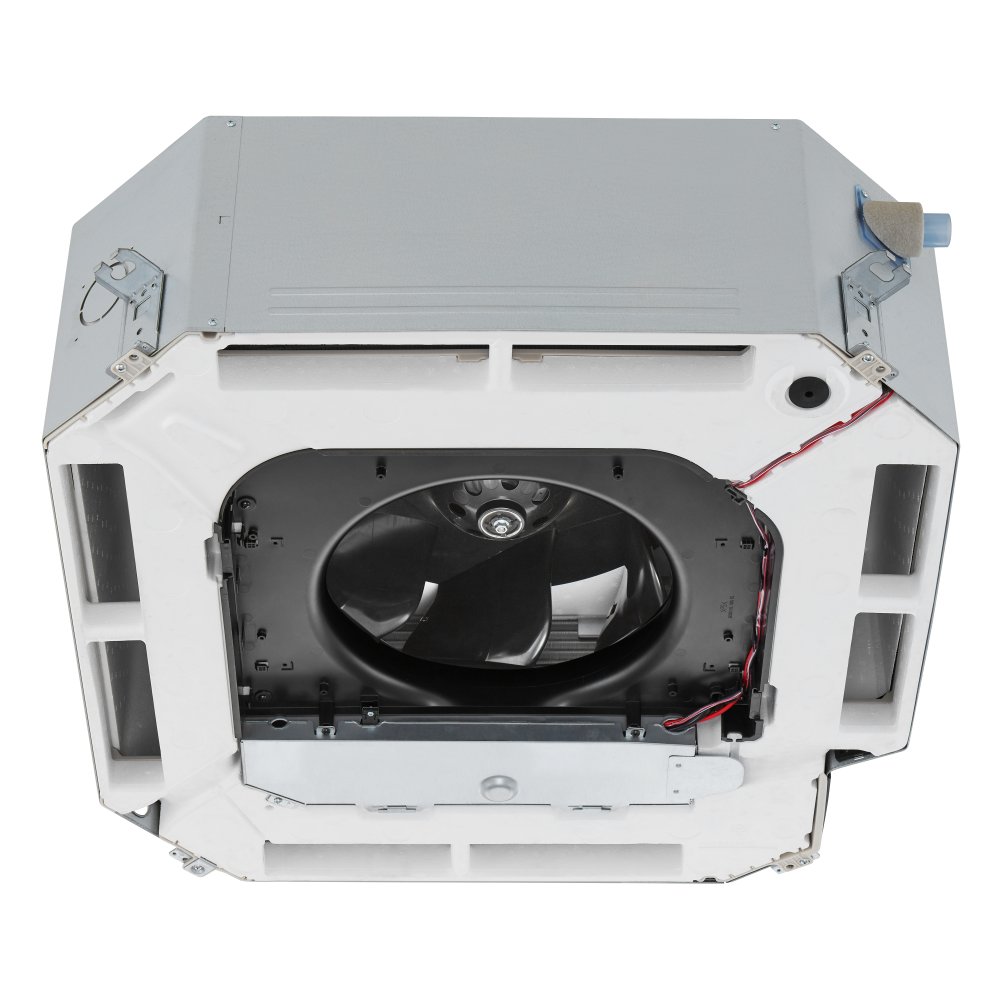

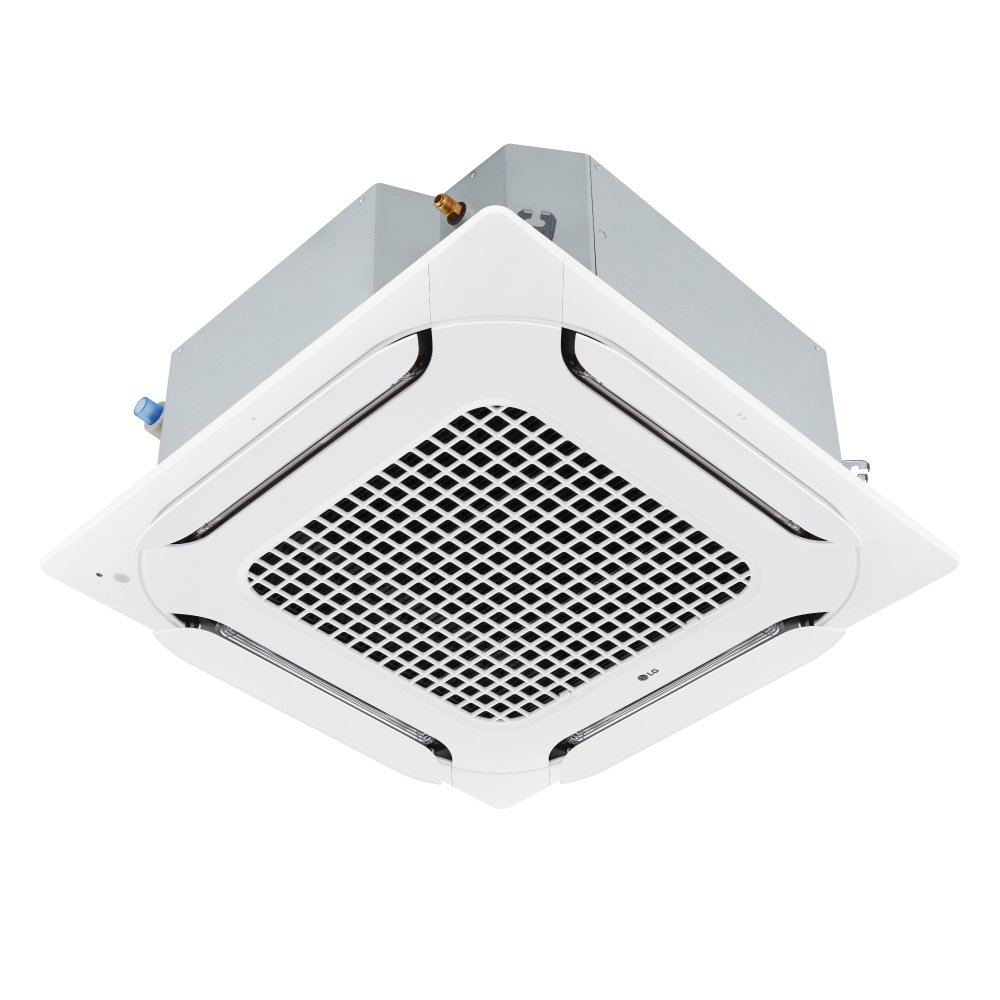

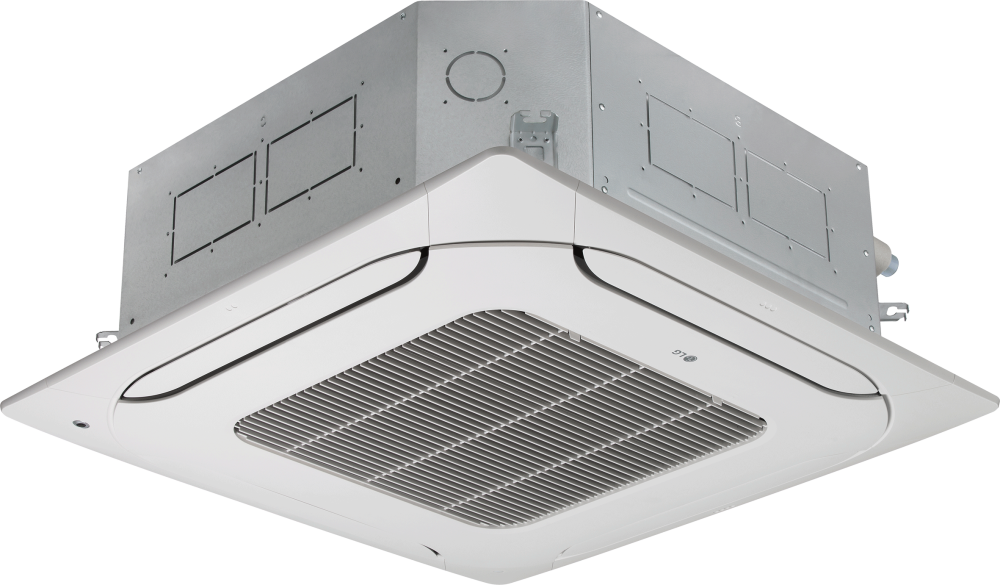

LG cassette units 570×570 mm are compact 4-way ceiling air conditioners designed for installation in standard ceiling grids. Thanks to their elegant design, they are suitable for offices, shops, and residential spaces. They provide even air distribution in four directions for fast and comfortable cooling and heating without significant temperature differences in the room.

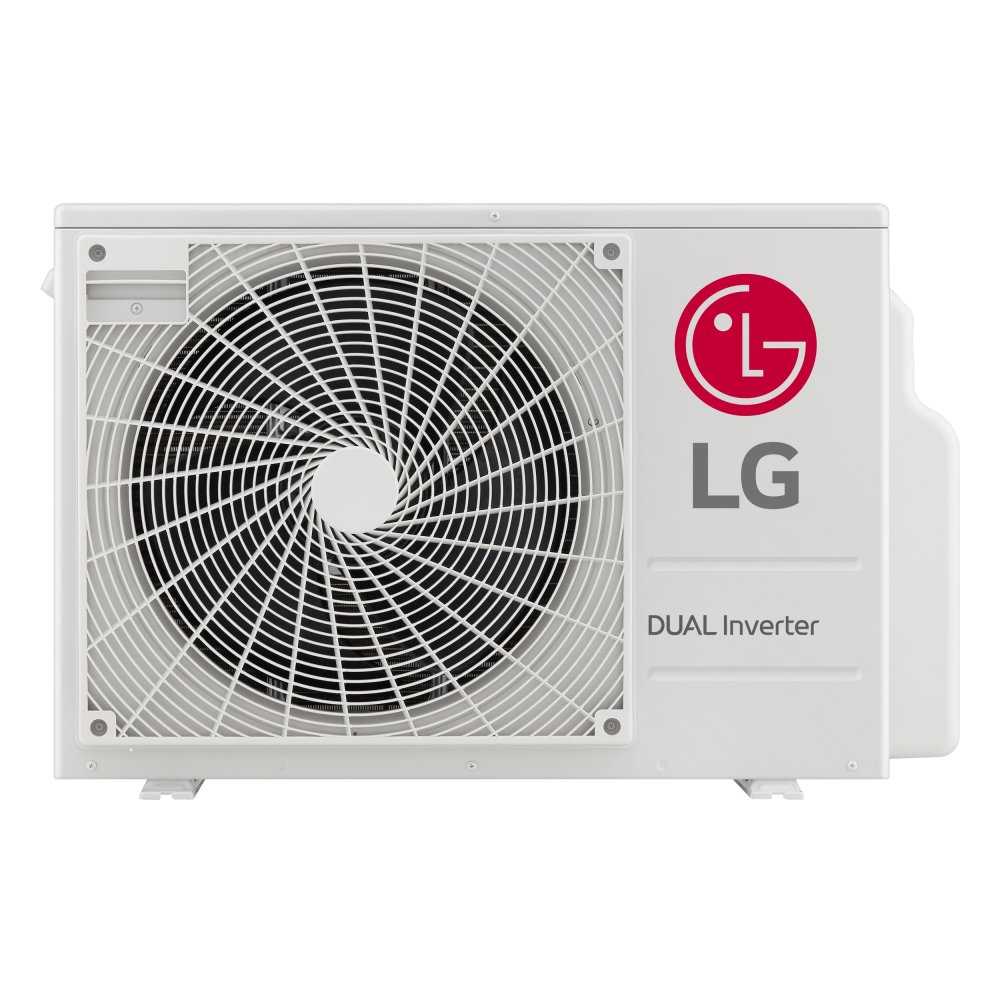

| Indoor Unit | Outdoor Unit | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| CT09F.NR0 | UUA1.UL0 | 2,5 | 3,2 | A++/A+ | 36 | R-32 | 1f/230V | 10A / type C | -15 / 48 °C | -18 / 18 °C |
| CT12F.NR0 | UUA1.UL0 | 3,4 | 4,1 | A++/A+ | 38 | R-32 | 1f/230V | 16A / type C | -15 / 48 °C | -18 / 18 °C |
| CT18F.NQ0 | UUB1.U20 | 5 | 5,7 | A++/A+ | 41 | R-32 | 1f/230V | 16A / type C | -15 / 48 °C | -18 / 18 °C |
