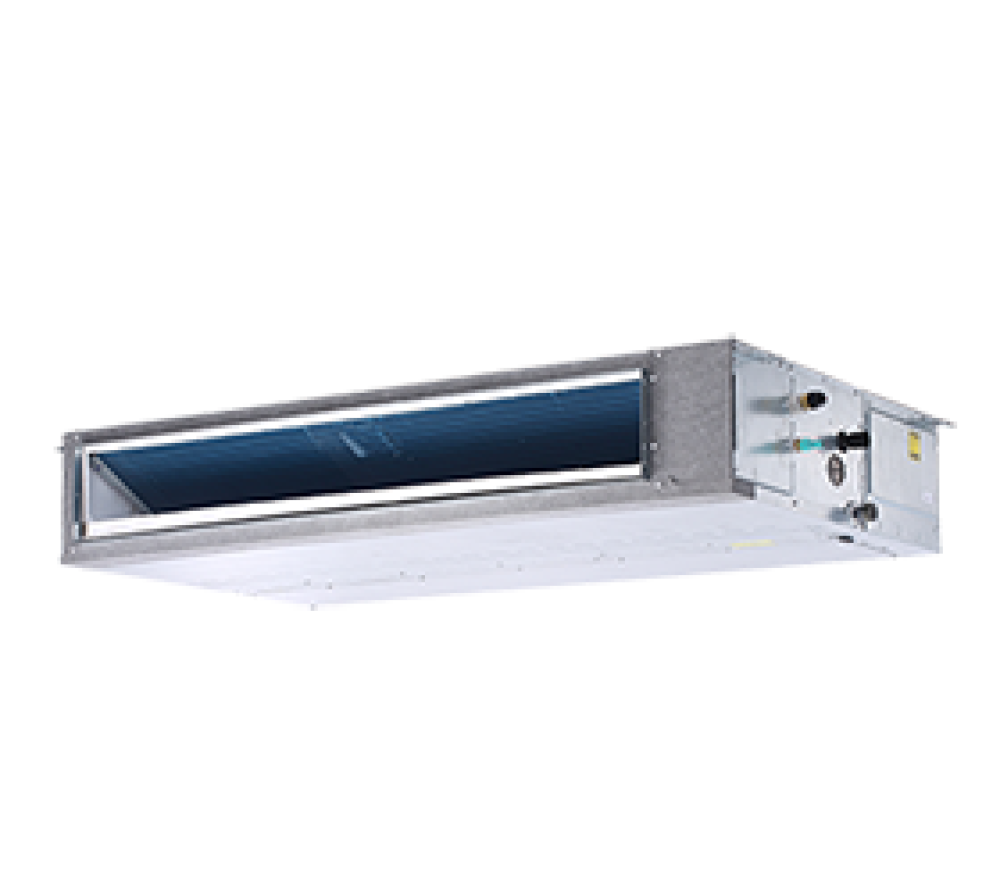

KAYSUN Amazon Medium Pressure Ducts
Commercial
Medium pressure duct units offer high air flows, allowing for longer air supply distances. Especially in long and narrow spaces, such as corridors, this can reduce the number of units required and save on investment costs.
- Quiet operation.
- Condensate pump as standard.
- Constant air flow technology.
- 245 mm standard height.
- Available pressure up to 160 Pa.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|
| KPDHF-45 DN5.0 | 4,5 | 5 | A++ | 24 | R-410A/R-32 | 1f/230V | 2A / type C | 710/245/770 |
| KPDHF-71 DN5.0 | 7,1 | 8 | A++ | 26 | R-410A/R-32 | 1f/230V | 2A / type C | 910/245/770 |
| KPDHF-90 DN5.0 | 9 | 10 | A++ | 28 | R-410A/R-32 | 1f/230V | 2A / type C | 1160/245/770 |
| KPDHF-112 DN5.0 | 11,2 | 12,5 | A++ | 28 | R-410A/R-32 | 1f/230V | 4A / type C | 1510/245/770 |
| KPDHF-140 DN5.0 | 14 | 14 | A++ | 29 | R-410A/R-32 | 1f/230V | 4A / type C | 1510/245/770 |
| KPDHF-160 DN5.0 | 16 | 16 | A++ | 31 | R-410A/R-32 | 1f/230V | 4A / type C | 1510/245/770 |
Files
User manual
Manual En, 20-300 - Compak.pdfManual EN, 15-190 - Compak.pdf
Manual EN - Medium Pressure Ducts.pdf
Návod na obsluhu a inštaláciu SK - Medium Pressure Ducts.pdf
Návod na obsluhu a inštaláciu SK -KCT-04 SR.pdf
Manual EN, Wired Controller - KCT-04 SR.pdf
Product sheet
Product Sheet - Compak.pdfProduct Sheet - Medium Pressure Ducts.pdf
Declaration of conformity
Declaration of Conformity, 15-190 - Compak.pdfDeclaration of Conformity, 20-300 - Compak.pdf
Declaration of Conformity - Medium Pressure Ducts.pdf
