KAYSUN Double Flow Console Split
Residential
The Double Flow Console Split floor-mounted unit, with its elegant design and compact dimensions, is ideal for spaces where a standard wall-mounted unit cannot be installed, such as loft apartments or offices, with a capacity from 3.52 kW to 5 kW.
- Thanks to the Double Flow Console, the unit ensures the distribution of cool or warm air through two outlets. It is an ideal solution as an alternative to a radiator with an outdoor unit down to -15 °C.
- The unit is unobtrusive and highly efficient (SEER/SCOP).
- Integrated WiFi – control via the NetHOME Plus App (voice control supported through Amazon Alexa or Google Home).
- Energy rating A++/A+.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|
| KSDA-35 DVR14-2 | 2,6 | 3,07 | A++/A+ | 27 | R-32 | 1f/230V | 20A / type C | -15 / 50 °C | -15 / 24 °C |
| KSDA-35 DVR14-2 | 3,52 | 3,81 | A++/A+ | 27 | R-32 | 1f/230V | 20A / type C | -15 / 50 °C | -15 / 24 °C |
| KSDA-52 DVR14-2 | 4,98 | 5,28 | A++/A+ | 32 | R-32 | 1f/230V | 20A / type C | -15 / 50 °C | -15 / 24 °C |
Files
User manual
Návod na obsluhu infračerveného ovládača KID-05.1 S & KID-05 S.pdfNávod na inštaláciu a obsluhu parapetná jednotka ENG.pdf
Návod na inštaláciu a obsluhu parapetná jednotka SK.pdf
Manual EN - Double Flow Console Split.pdf
Návod na obsluhu a inštaláciu SK - Double Flow Console Split.pdf

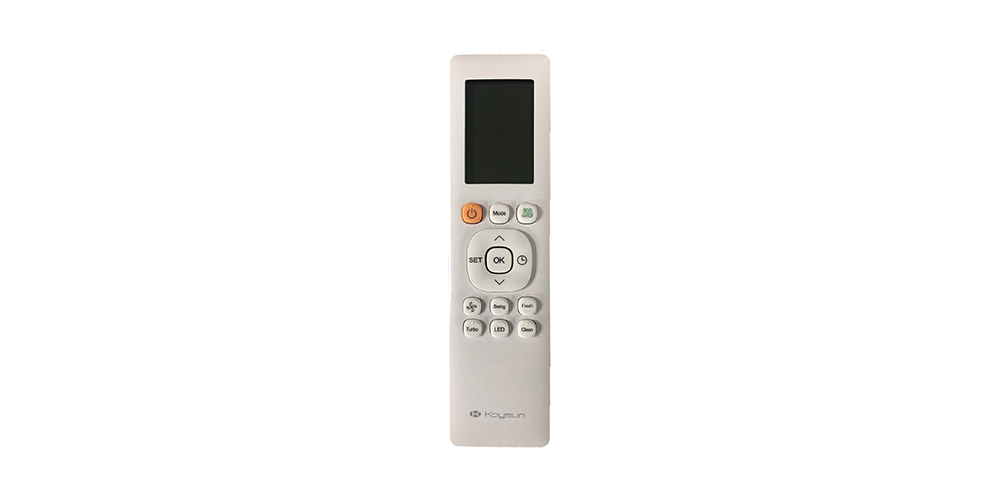

Manual EN - Controller KID-05 S.pdf
