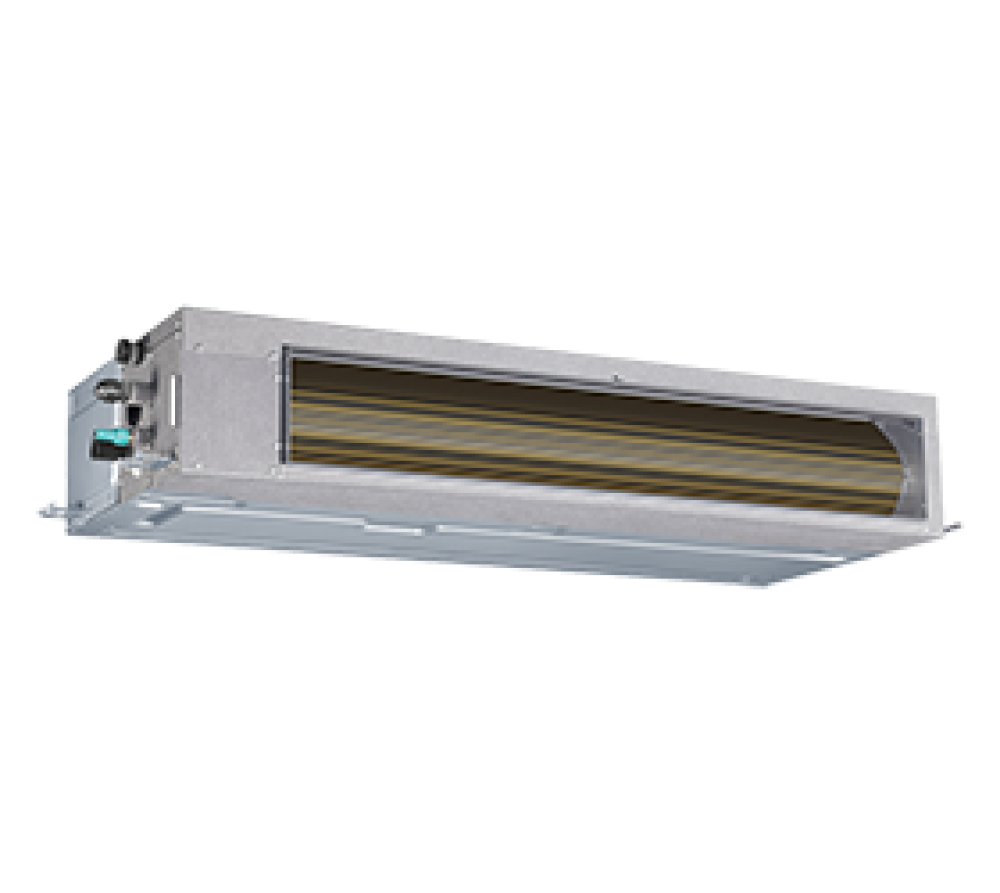

KAYSUN Amazon Ducts
Commercial
The Kaysun VRF duct range is an excellent solution for spaces where air distribution needs to be balanced. These units automatically regulate static pressure.
- Quiet operation.
- Condensate pump as standard.
- Constant air flow technology.
- 199 mm standard height.
- Available pressure up to 50 Pa.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|
| KPDF-15 DN5.0 | 1,5 | 1,8 | A++ | 22 | R-410A/R-32 | 1f/230V | 1A / type C | 663/199/470 |
| KPDF-22 DN5.0 | 2,2 | 2,5 | A++ | 22 | R-410A/R-32 | 1f/230V | 1A / type C | 663/199/470 |
| KPDF-28 DN5.0 | 2,8 | 3,2 | A++ | 22 | R-410A/R-32 | 1f/230V | 1A / type C | 663/199/470 |
| KPDF-36 DN5.0 | 3,6 | 4 | A++ | 25 | R-410A/R-32 | 1f/230V | 2A / type C | 803/199/470 |
| KPDF-45 DN5.0 | 4,5 | 5 | A++ | 26 | R-410A/R-32 | 1f/230V | 2A / type C | 1003/199/470 |
| KPDF-56 DN5.0 | 5,6 | 6,3 | A++ | 27 | R-410A/R-32 | 1f/230V | 2A / type C | 1003/199/470 |
| KPDF-71 DN5.0 | 7,1 | 8 | A++ | 29 | R-410A/R-32 | 1f/230V | 2A / type C | 1203/199/470 |
