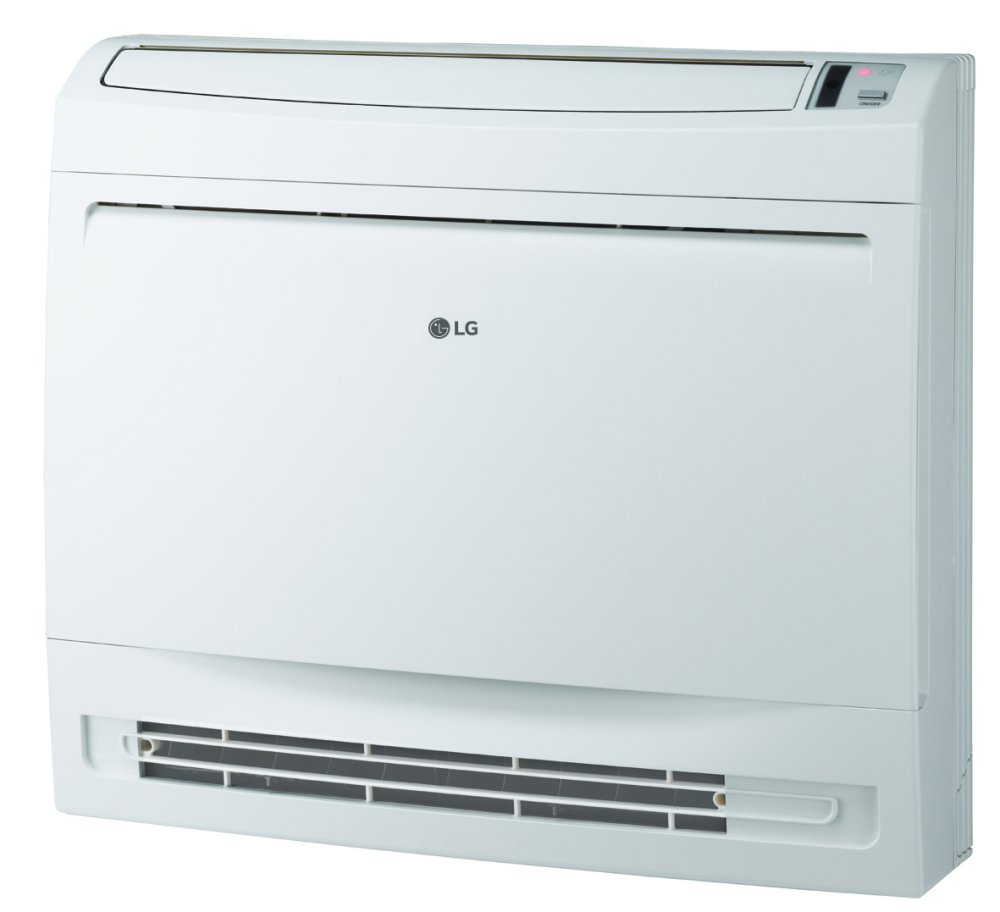

LG floor-standing / floor-console units are designed for installation on the wall just above the floor or under a window. They are an ideal solution for spaces where wall-mounted or cassette units cannot be used, such as historic buildings, rooms with large windows, restaurants, or commercial spaces with limited ceiling space.
| Indoor Unit | Outdoor Unit | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| UQ09F.NA0 | UUA1.UL0 | 2,6 | 3,1 | A++/A+ | 38 | R-32 | 1f/230V | 10A / type C | -15 / 48 °C | -18 / 18 °C |
| UQ12F.NA0 | UUA1.UL0 | 3,5 | 4 | A++/A+ | 38 | R-32 | 1f/230V | 10A / type C | -15 / 48 °C | -18 / 18 °C |
| UQ18F.NA0 | UUB1.U20 | 5 | 4,9 | A++/A+ | 44 | R-32 | 1f/230V | 16A / type C | -15 / 48 °C | -18 / 18 °C |
User manual
Installation manual EN - Parapetová jednotka.pdfProduct sheet
Product Sheet - Parapetová jednotka.pdfDeclaration of conformity
Declaration of Conformity - UQ09F.PDFOther
Inštalačný manuál CZ - Parapetová jednotka.pdfFor partners 9
