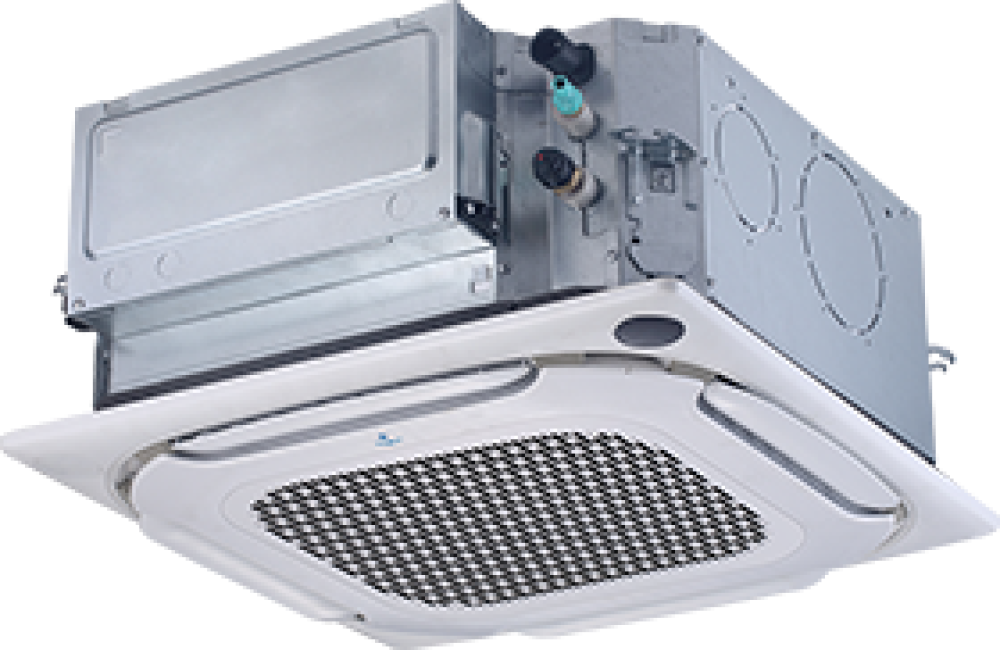

KAYSUN Mini Amazon Hybrid Cassettes
Residential
The cassettes for the Mini Amazon series are specially designed to be integrated into hybrid systems of VRF and hydraulic modules. They supply air in a 360° pattern for even, fast, and wide-reaching air conditioning that reaches every corner of your room, thanks to their DC Inverter fan and available pressure of up to 50 Pa.
- High ceiling installation.
- 7 fan speeds.
- Individual louver control.
- 360° airflow.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Air flow (m³/h) | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|
| KCIF-22 DR5.0H | 2,2 | 2,4 | 345 | 25 | R-32 | 1f/230V | 1A / type C | 575/235/638 |
| KCIF-28 DR5.0H | 2,8 | 3,2 | 395 | 25 | R-32 | 1f/230V | 1A / type C | 575/235/638 |
| KCIF-36 DR5.0H | 3,6 | 4 | 405 | 26 | R-32 | 1f/230V | 1A / type C | 575/235/638 |
| KCIF-56 DR5.0H | 5,6 | 6,3 | 625 | 30 | R-32 | 1f/230V | 2A / type C | 575/235/638 |
