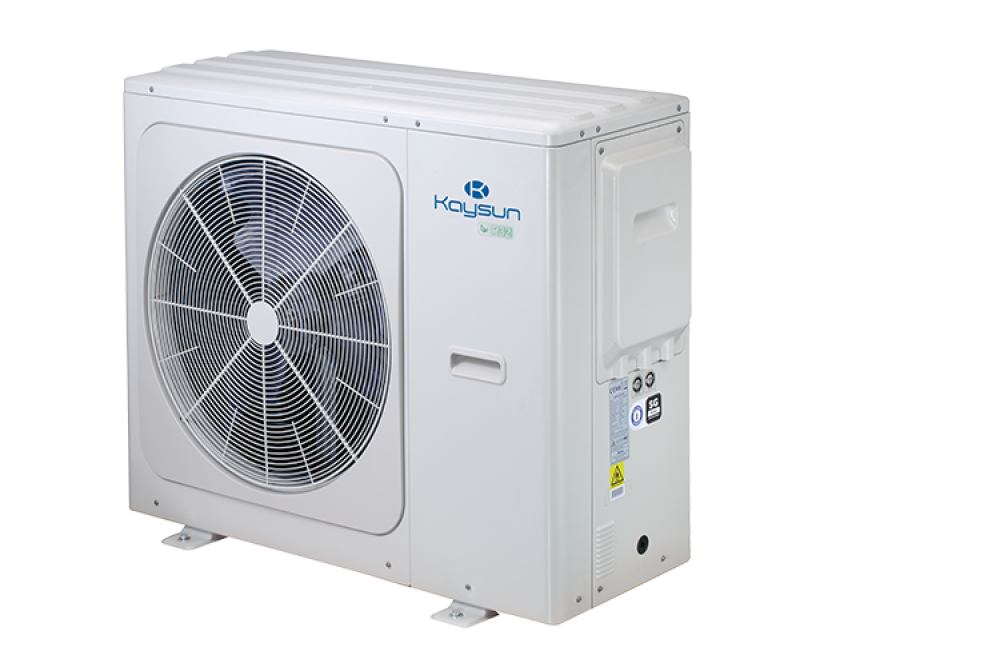

KAYSUN Minichillers Full DC Inverter R-32

Commercial

The Kaysun Minichiller units are ideal for domestic use or smaller commercial applications where both hot and cold water are required. The units are quiet, compact, and equipped with inverter motors, which ensure significant energy savings and improved comfort. They are equipped with an integrated hydraulic module as standard.

Connectivity via WiFi through an app.

Serial Modbus output.

Possibility to connect up to 6 units in cascade.

R32 refrigerant with low GWP (Global Warming Potential).

Built-in hydraulic module.

Full inverter technology with high seasonal efficiency.

Parameters

Type	Cooling Capacity (kW)	Heating Capacity (kW)	Energy Class	Outdoor Unit Sound Pressure Level (dB(A))	Refrigerant	Power Supply	Recommended circuit breaker	Water flow rated (m³/h)
KEM-05 DVR	5,5	6,6	A+++	64	R-32	1f/230V	20A / type C	0,9
KEM-07 DVR	7,4	8,5	A+++	66	R-32	1f/230V	20A / type C	1,3
KEM-09 DVR	9	10,2	A+++	68	R-32	1f/230V	20A / type C	1,5
KEM-12 DVR	11,6	12,5	A+++	69	R-32	1f/230V	32A / type C	2
KEM-14 DVR	13,4	14,5	A+++	71	R-32	1f/230V	32A / type C	2,2
KEM-05 DVR	14	16,2	A+++	71	R-32	1f/230V	32A / type C	2,4
KEM-14 DTR	11,6	12,5	A+++	66	R-32	3f/400V	16A / type C	2
KEM-16 DVR	13,4	14,5	A+++	74	R-32	3f/400V	16A / type C	2,2
KEM-16 DTR	14	16,2	A+++	74	R-32	3f/400V	16A / type C	2,4
