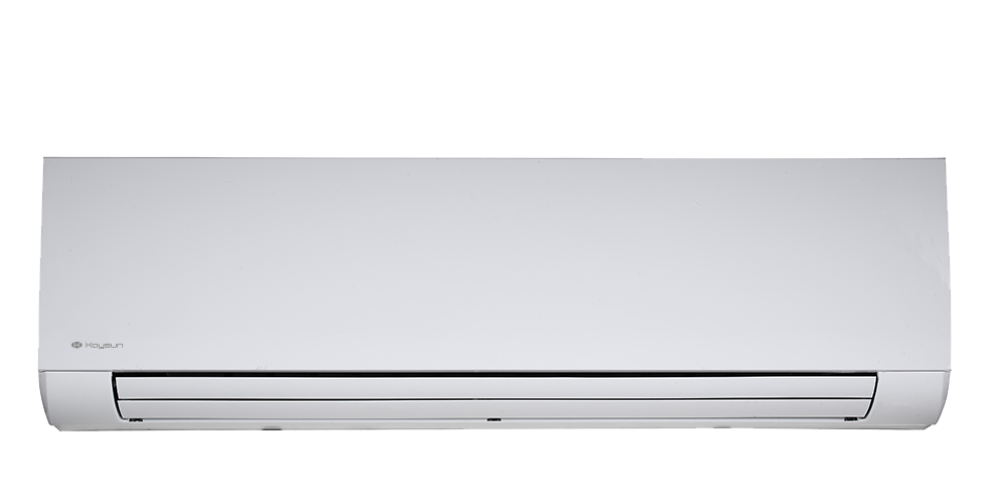

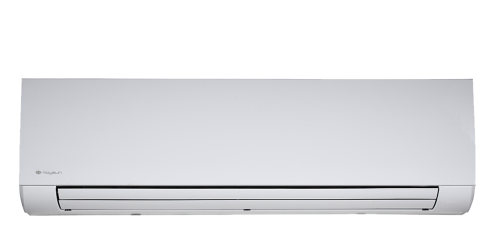

KAYSUN Wall - Mounted
Residential
Kaysun wall-mounted fan coil units are equipped with advanced features that facilitate installation and reduce maintenance time and effort, while maximizing user comfort.
- Optimal air flow distribution.
- A wide range of simple and intuitive individual and centralised controllers, integrated control solutions, integration within BMS and latest-generation wireless models.
- New electronics with 0–10 V input signal to control fan speed via external control.
- Maximum comfort and reduced consumption.
Parameters
| Type | Cooling Capacity min. /max. (kW) | Heating Capacity min./max. (kW) | Indoor Unit Sound Pressure Level (dB(A)) | Sensitive cooling capacity min. / max. (kW) | Power input min. / max (W) | Water flow cooling min. / max (m³/h) | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|---|
| KFC-AY-2T-250D3 | 2,39/2,7 | 1,86/2,94 | 27 | 1,85/2,15 | 10.13 | 0,42/0,48 | 1f/230V | 16A / type C | 915 / 290 / 230 |
| KFC-AY-2T-400D3 | 2,88/3,81 | 3,09/4,3 | 35 | 2,31/3,18 | 15/34 | 0,51/0,67 | 1f/230V | 16A / type C | 915 / 290 / 230 |
| KFC-AY-2T-600D3 | 3,79/4,87 | 3,5/5,26 | 35 | 3,1/4,11 | 18/38 | 0,65/0,85 | 1f/230V | 16A / type C | 1072 / 315 / 230 |
