LG Low-pressure ducted unit

Commercial

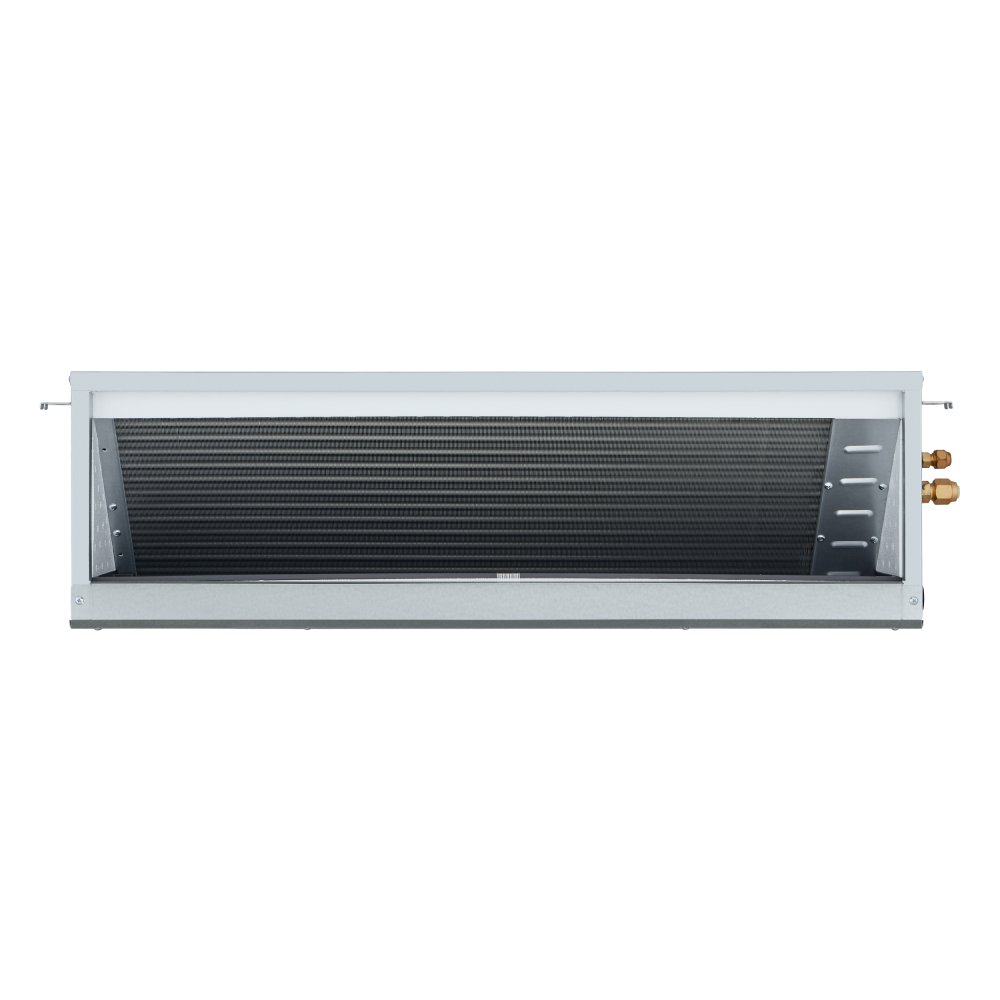

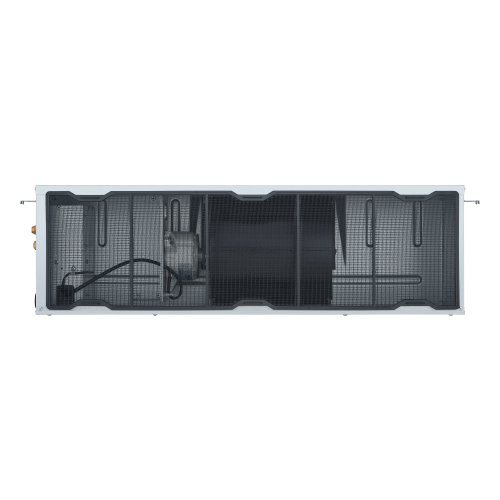

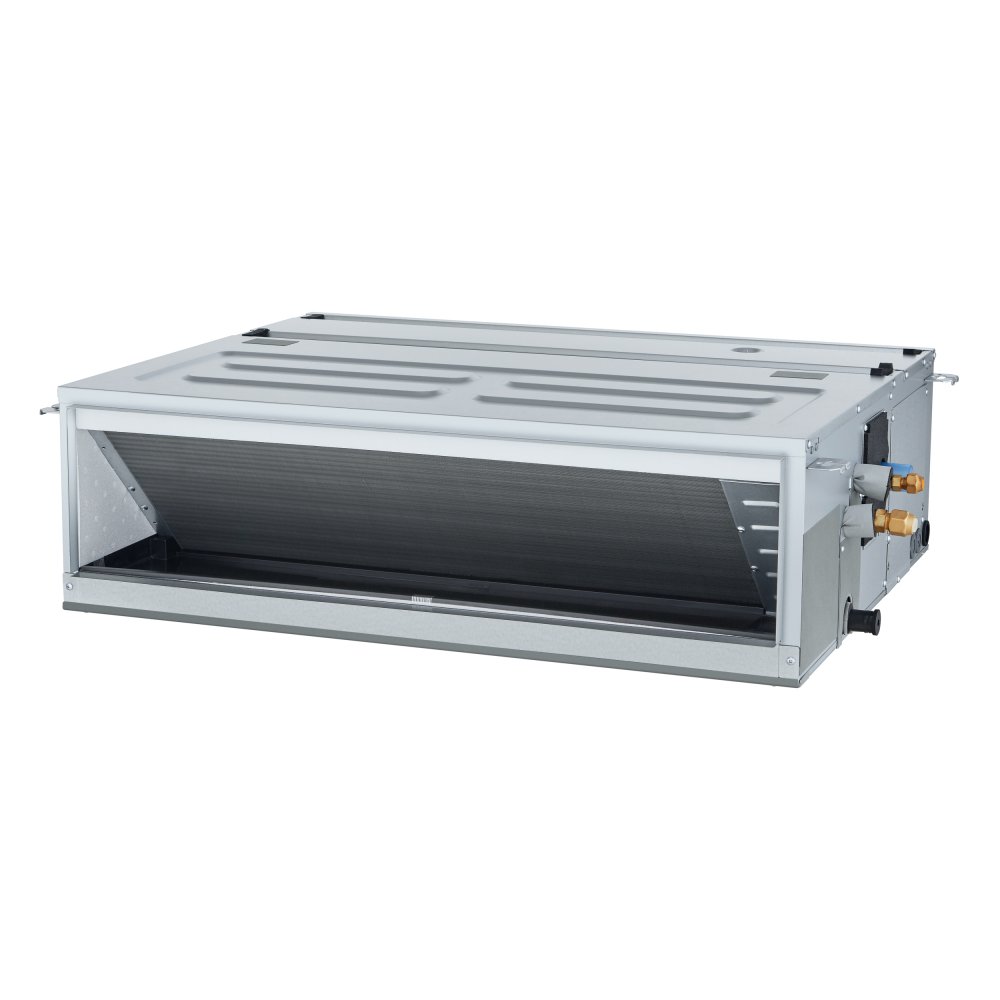

LG low static duct units are compact low-pressure ducted air conditioning units designed for concealed installation in ceilings or suspended ceilings. Thanks to their low static pressure, they are ideal for distributing air through short duct runs in small and medium-sized commercial and residential spaces, where discreet installation and even air conditioning are required.

Low static pressure – optimized for short duct runs.

Compact design – low unit height for easy installation in ceiling voids.

Even air distribution – air distribution through ductwork to multiple rooms.

DUAL Inverter technology – high efficiency with low energy consumption.

Quiet operation – suitable for offices, shops, and residential spaces.

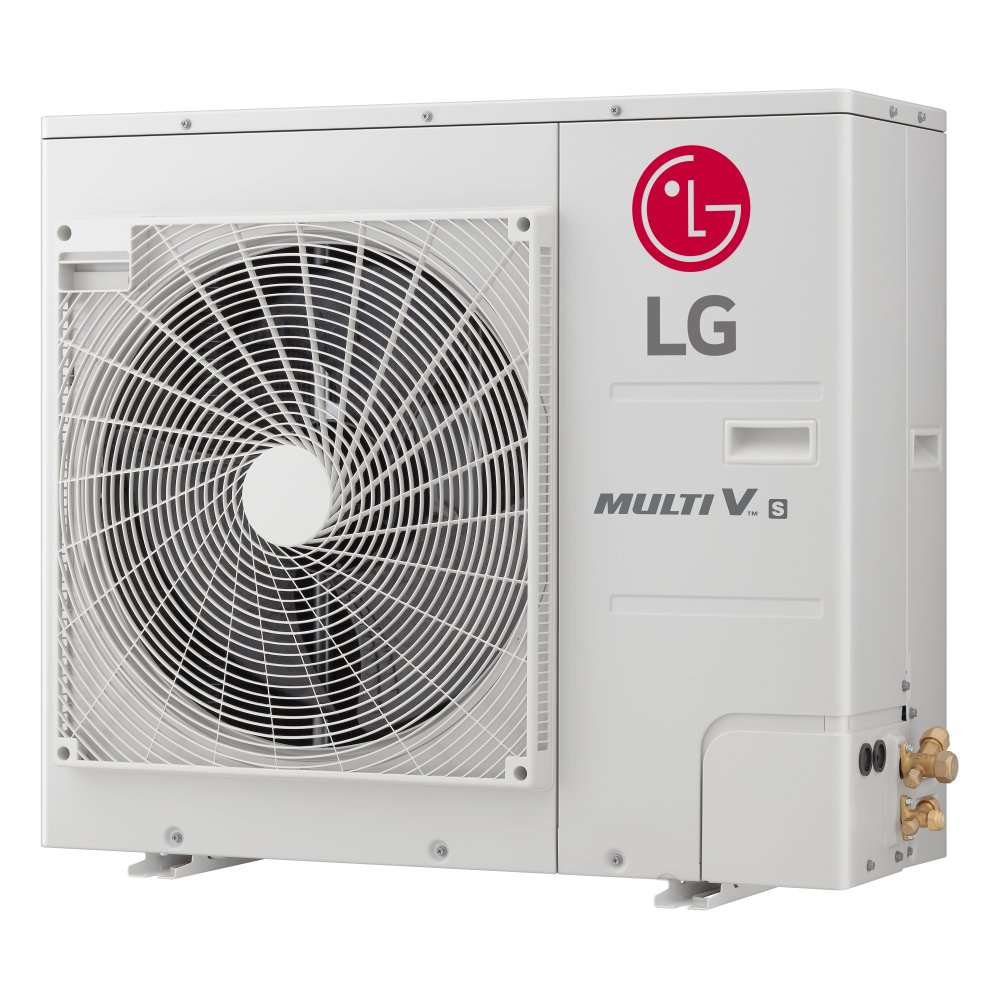

Flexible installation – compatible with various types of outdoor units.

Parameters

Indoor Unit	Outdoor Unit	Cooling Capacity (kW)	Heating Capacity (kW)	Energy Class	Indoor Unit Sound Pressure Level (dB(A))	Refrigerant	Power Supply	Recommended circuit breaker	Outdoor Temperature Range for Cooling Min./Max. (°C)	Outdoor Temperature Range for Heating Min./Max. (°C)
CL09F.N50	UUA1.UL0	2,5	3,2	A++/A+	35	R-32	1f/230V	10A / type C	-15 / 48 °C	-18 / 18 °C
CL12F.N50	UUA1.UL0	3,4	4	A+/A	35	R-32	1f/230V	16A / type C	-15 / 48 °C	-18 / 18 °C
CL18.N60	UUB1.U20	5	5,8	A++/A	34	R-32	1f/230V	16A / type C	-15 / 48 °C	-18 / 18 °C
CL24F.N30	UUC.U40	6,8	7,5	A++/A	39	R-32	1f/230V	20A / type C	-15 / 48 °C	-18 / 18 °C
