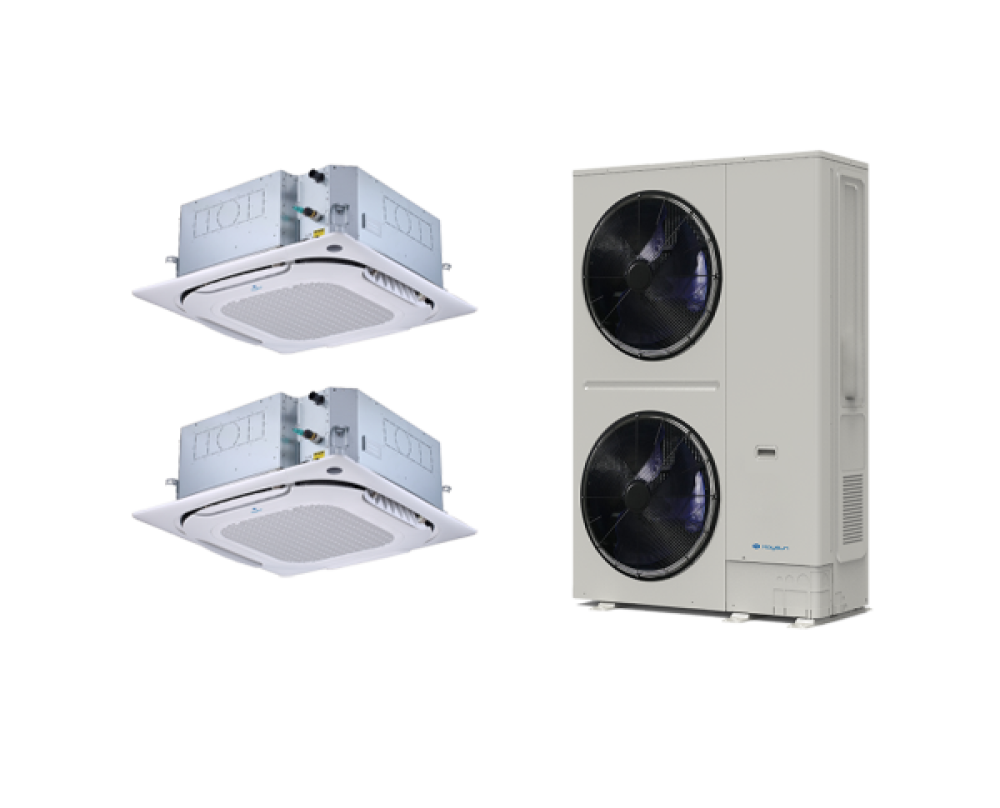

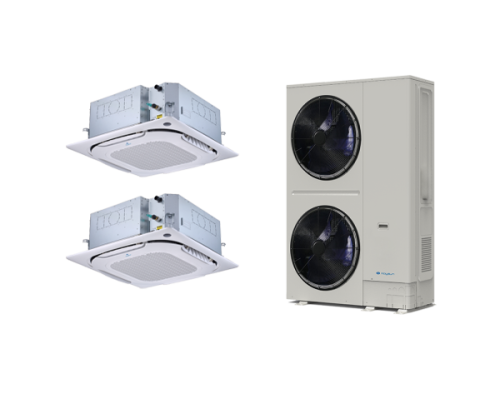

KAYSUN Magnus Multi Cassettes
VRF
The
new
MAGNUS
Multi
Cassette
series
allows
the
connection
of
2
to
4
indoor
units
to
all
types
of
spaces
that
need
to
be
air-c
onditioned,
ensuring
an
even
and
comfortable
air
distribution.
-
Connectable up to 2 indoor units of the same model.
-
Compact outdoor unit designed for easy transport and installation.
-
Indoor unit with available pressure up to 400 Pa.
-
Constant air flow.
-
Condensate pump included, capable of lifting water up to 1,200 mm.
-
Integrated WiFi – control via the NetHome Plus App ( voice control compatible with Amazon Alexa and Google Home ).
Parameters
| Set | Cooling Capacity (kW) | Heating Capacity (kW) | Indoor/Outdoor Unit | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|
| KCIM2-200F DN11 | 20 | 20 | KCIM-100 DN11(X2)/KUE 200 DN11 | 33 | R-410a | 3f/400V | 20A / type C | -5 / 48 °C | -20 / 24 °C |
| KCIM2-280F DN11 | 28 | 28 | KCIM-140 DN11(X2)/KUE 280 DN11 | 34 | R-410a | 3f/400V | 20A / type C | -5 / 48 °C | -20 / 24 °C |
| KCIM3-280F DN11 | 28 | 28 | KCIM-100 DN11(X3)/KUE 280 DN11 | 33 | R-410a | 3f/400V | 25A / type C | -5 / 48 °C | -20 / 24 °C |
| KCIM3-400F DN11 | 40 | 40 | KCIM-140 DN11(X3)/KUE 400 DN11 | 34 | R-410a | 3f/400V | 32A / type C | -15 / 55 °C | -30 / 30 °C |
| KCIM4-400F DN11 | 40 | 40 | KCIM-100 DN11(X4)/KUE 400 DN11 | 33 | R-410a | 3f/400V | 32A / type C | -15 / 55 °C | -30 / 30 °C |
| KCIM4-560F DN11 | 56 | 56 | KCIM-140 DN11(X4)/KUE 560 DN11 | 34 | R-410a | 3f/400V | 40A / type C | -15 / 55 °C | -30 / 30 °C |
Files
User manual
Návod na inštaláciu a obsluhu floor standing Compak R290 SK.pdfNávod na inštaláciu a obsluhu floor standing Compak R290 ENG.pdf
Návod na inštaláciu a obsluhu závesný Compak R290 SK.pdf
Návod na inštaláciu a obsluhu závesný Compak R290 ENG.pdf
Manual EN, Cassette 840x840 - Magnus Multi Cassettes.pdf
Manual EN, 40-56 kW - Magnus Multi Cassettes.pdf
Manual EN, 20-33,5 kW - Magnus Multi Cassettes.pdf
Manual EN - Wall Controller KCT-04 SR.pdf
Návod na obsluhu a inštaláciu SK - nástenný ovládač KCT-04 SR.pdf
Product sheet
Product sheet floor standing Compak.pdfProduct sheet závesný Compak R290.pdf
Product Sheet - Magnus Multi Cassettes.pdf
Declaration of conformity
Prehlásenie o zhode floor standing Compak.pdfPrehlásenie o zhode závesný Compak.pdf
Declaration of Conformity - Magnus Multi Cassettes.pdf
