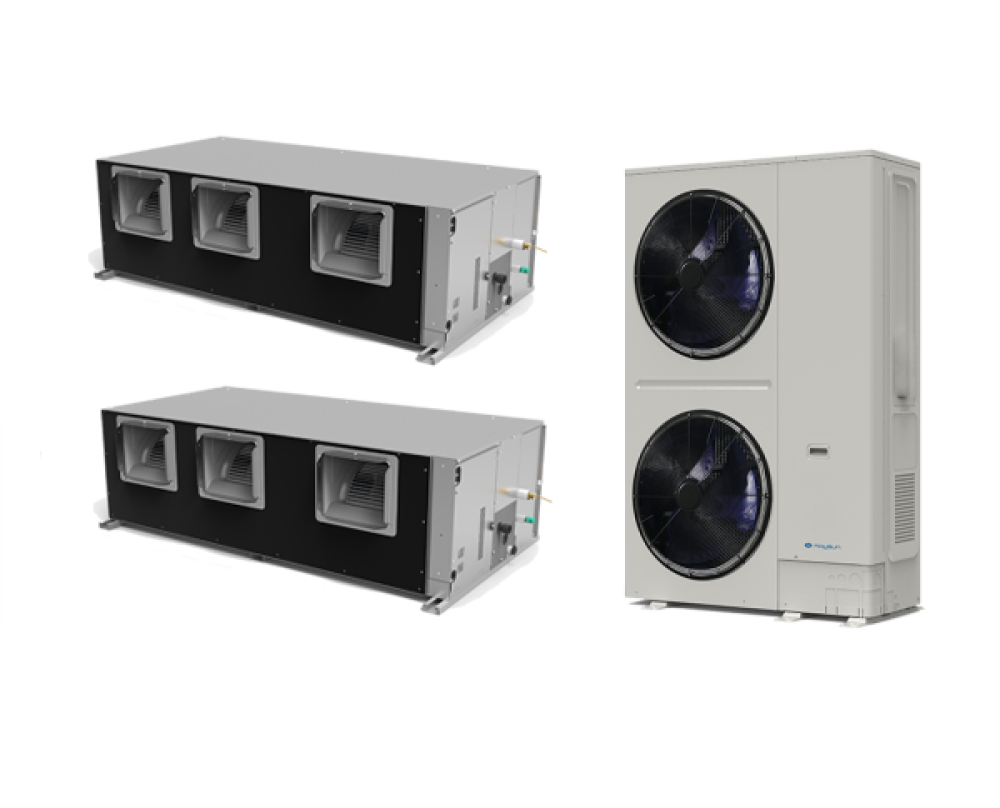

KAYSUN Magnus Multi Ducts
VRF
The
new
MAGNUS
Multi
Duct
series
offers
an
ideal
solution
for
all
open
spaces
that
require
more
than
one
indoor
unit
to
achieve
adequate
air
conditioning.
-
Connectable up to 2 indoor units of the same model.
-
Compact outdoor unit designed for easy transport and installation.
-
Indoor unit with available pressure up to 400 Pa.
-
Constant air flow.
-
Condensate pump included, capable of lifting water up to 1,200 mm.
-
Integrated WiFi – control via the NetHome Plus App ( voice control compatible with Amazon Alexa and Google Home ).
Parameters
| Set | Cooling Capacity (kW) | Heating Capacity (kW) | Indoor/Outdoor Unit | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Outdoor Temperature Range for Cooling Min./Max. (°C) | Outdoor Temperature Range for Heating Min./Max. (°C) |
|---|---|---|---|---|---|---|---|---|---|
| KPDHM2-400F DN11 | 40 | 40 | KPDH 200 DN11(X2)/KUE 400 DN11 | 42 | R-410a | 3f/400V | 32A / type C | -15 /55 °C | -30 / 30 °C |
| KPDHM2-450F DN11 | 45 | 45 | KPDH 224 DN11(X2)/KUE 450 DN11 | 42 | R-410a | 3f/400V | 40A / type C | -15 /55 °C | -30 / 30 °C |
| KPDHM2-560F DN11 | 56 | 56 | KPDH 280 DN11(X2)/KUE 560 DN11 | 42 | R-410a | 3f/400V | 50A / type C | -15 /55 °C | -30 / 30 °C |
Files
User manual
Návod na inštaláciu a obsluhu Compak Split ENG.pdfManual EN. 40-56 kW - Magnus Multi Ducts.pdf
Manual EN, 20-33,5 kW - Magnus Multi Ducts.pdf
Manual EN. High Capacity Duct - Magnus Multi Ducts.pdf
Manual EN - Wall Controller KCT-04 SR.pdf
Návod na obsluhu a inštaláciu SK - nástenný ovládač KCT-04 SR.pdf
Product sheet
Product sheet Compak Split.pdfProduct Sheet - Magnus Multi Ducts.pdf
Declaration of conformity
Prehlásenie o zhode Compak Split.pdfDeclaration of Conformity - Magnus Multi Ducts.pdf
