LG Medium-pressure ducted unit

Commercial

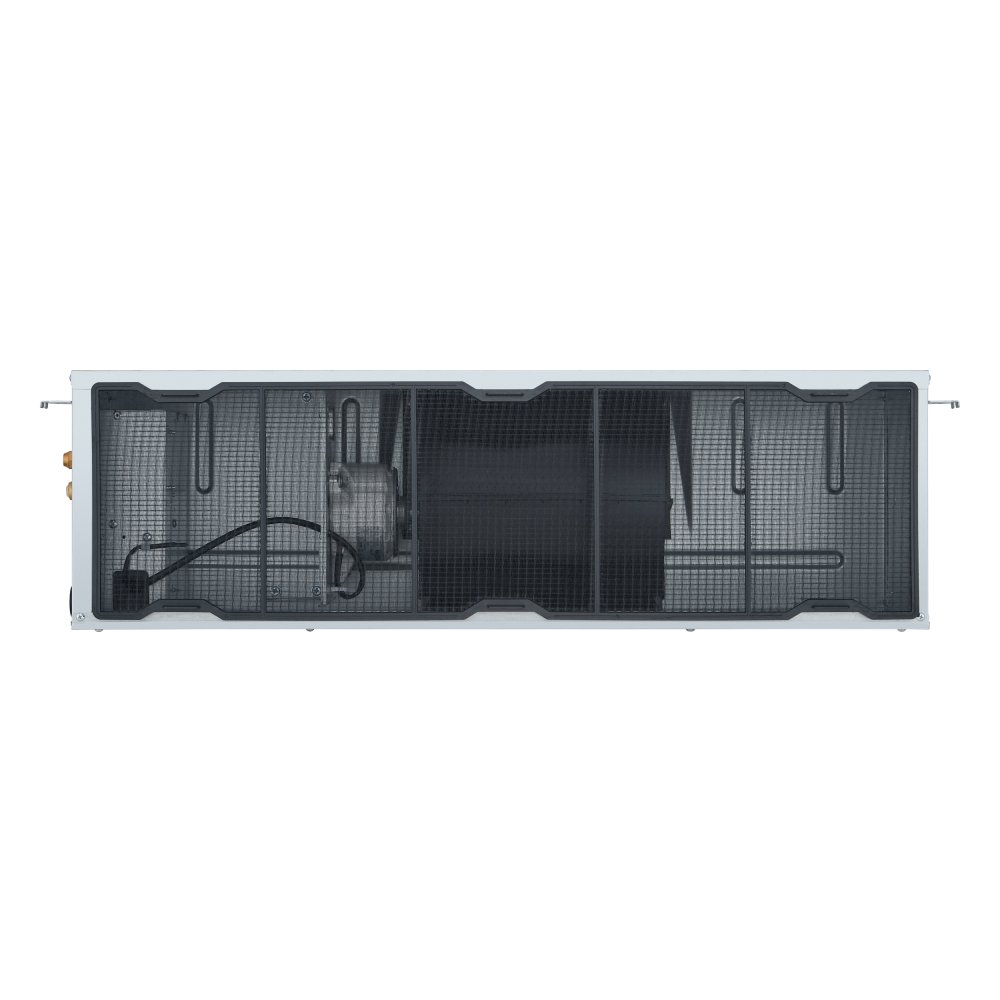

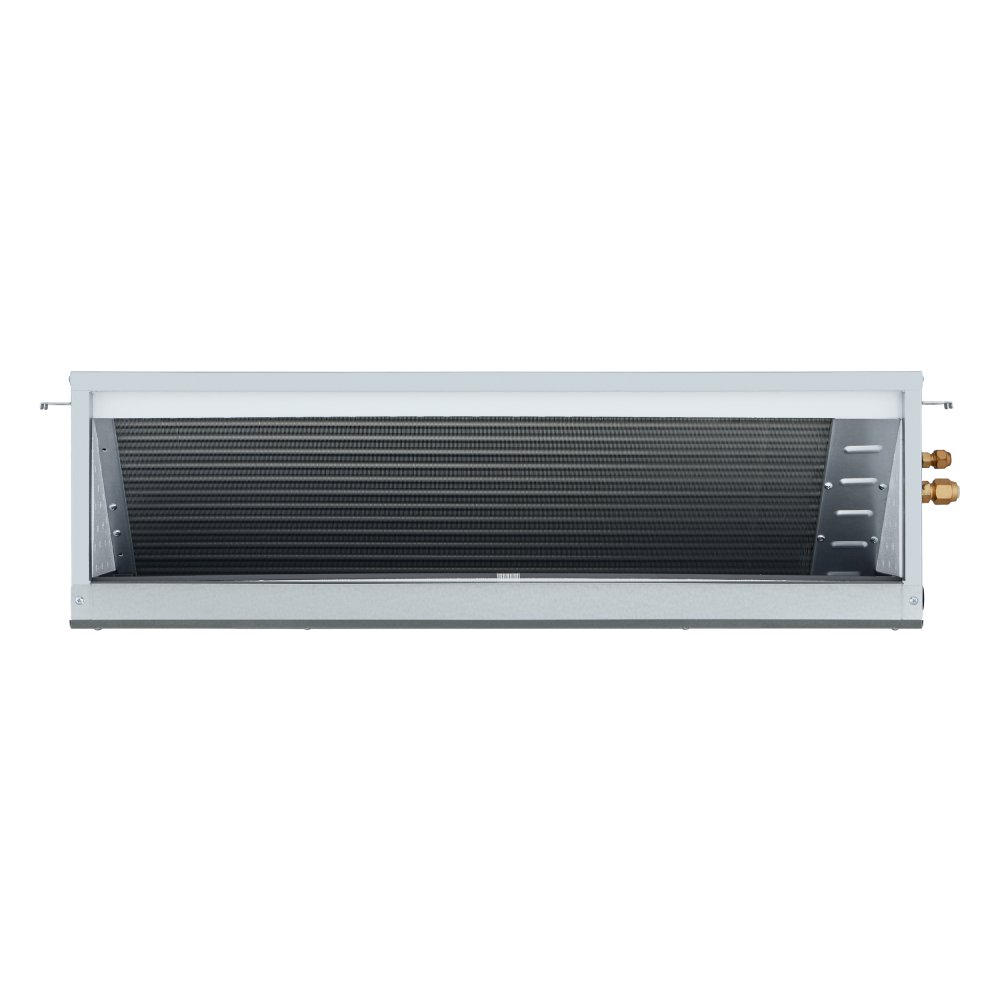

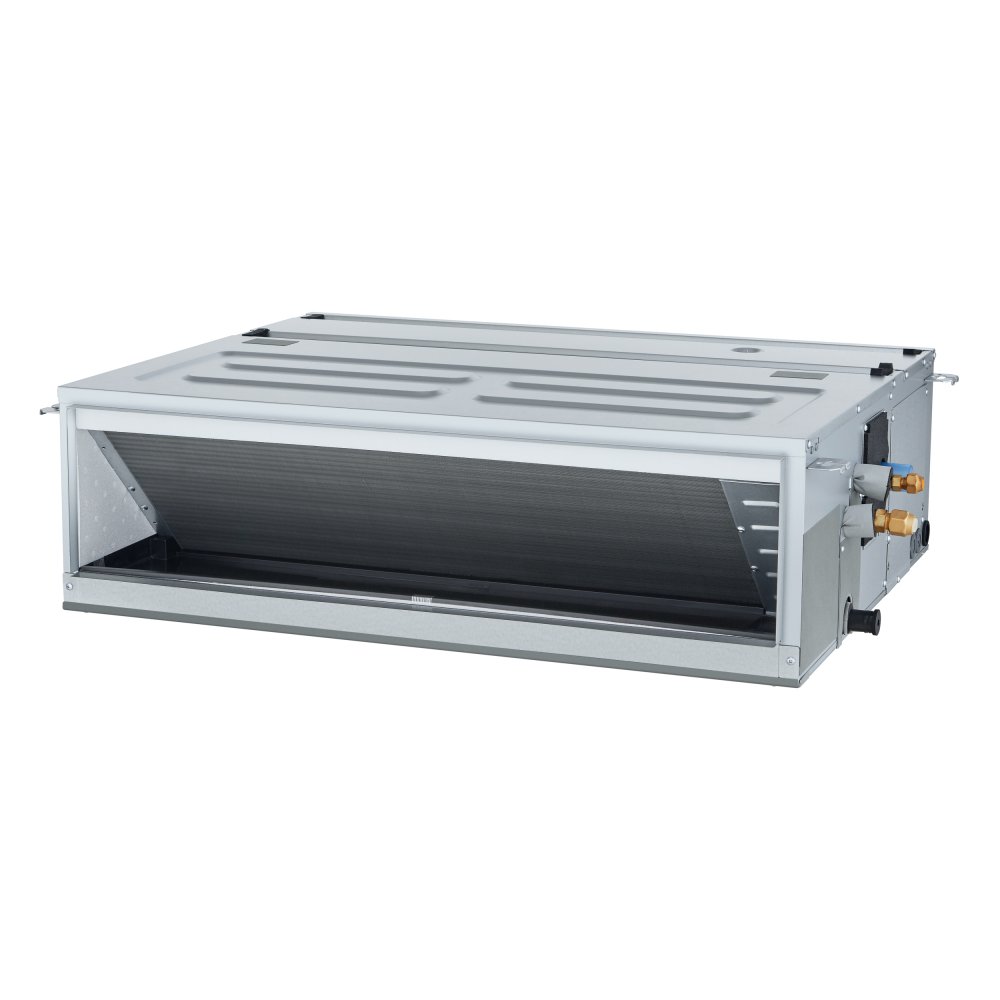

LG medium static duct units are designed for concealed installation in ceilings or walls with the option of vertical (upright) installation. Thanks to higher static pressure, they are suitable for longer duct systems and air distribution to multiple rooms in medium and large commercial spaces.

Medium static pressure – suitable for longer duct systems.

Vertical and horizontal installation options – high mounting flexibility.

Even air distribution – air supply through ductwork to multiple rooms.

DUAL Inverter technology – high efficiency with low energy consumption.

Compact design – easy installation in technical spaces.

Quiet operation – suitable for commercial environments requiring low noise levels.

Parameters

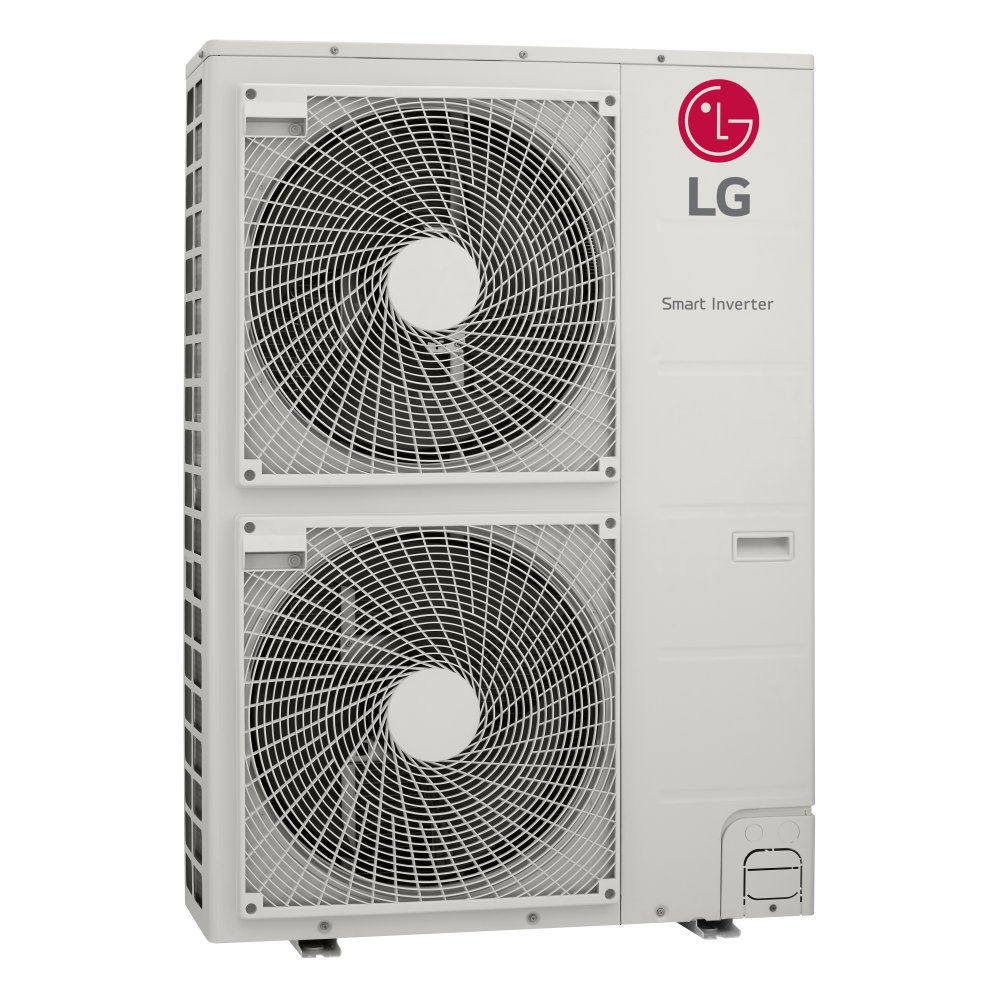

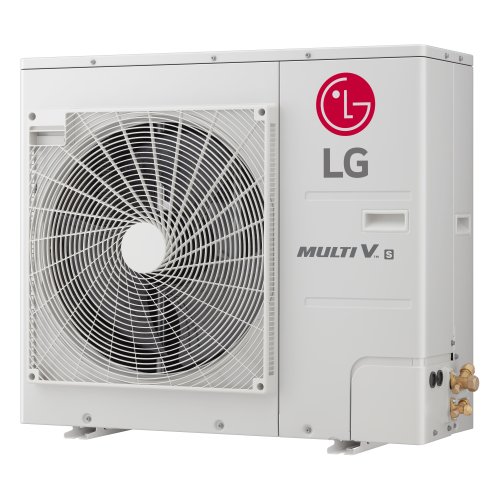

Indoor Unit	Outdoor Unit	Cooling Capacity (kW)	Heating Capacity (kW)	Energy Class	Indoor Unit Sound Pressure Level (dB(A))	Refrigerant	Power Supply	Recommended circuit breaker (1f/3f)	Outdoor Temperature Range for Cooling Min./Max. (°C)	Outdoor Temperature Range for Heating Min./Max. (°C)
CM18F.NA0	UUB1.U20	5	5,5	A++/A+	31	R-32	1f/230V	16A / type C	-15 / 48 °C	-18 / 18 °C
CM24F.NA0	UUC1.U40	6,8	7,5	A++/A	36	R-32	1f/230V	20A / type C	-15 / 48 °C	-18 / 18 °C
UM30F.NA0	UUC1.U40	7,5	9	A+/A	38	R-32	1f/230V	20A / type C	-15 / 48 °C	-18 / 18 °C
UM36F.N21	UUD1.U30	9,5	10,8	A+/A	36	R-32	1f/230V /3f/400V	25A / type C / 16A/ type C	-15 / 48 °C	-20 / 18 °C
UM42F.N21	UUD1.U30	12	13,5	A+/A	36	R-32	1f/230V /3f/400V	32A / type C / 16A/ type C	-15 / 48 °C	-20 / 18 °C
UM48F.N31	UUD1.U30	13,4	15,5	-	39	R-32	1f/230V /3f/400V	40A / type C / 20A/ type C	-15 / 48 °C	-20 / 18 °C
UM60F.N31	UUD1.U30	14,6	16,8	-	42	R-32	1f/230V /3f/400V	40A / type C / 20A/ type C	-15 / 48 °C	-20 / 18 °C
