KAYSUN Ducts 2 Pipes D3

Commercial

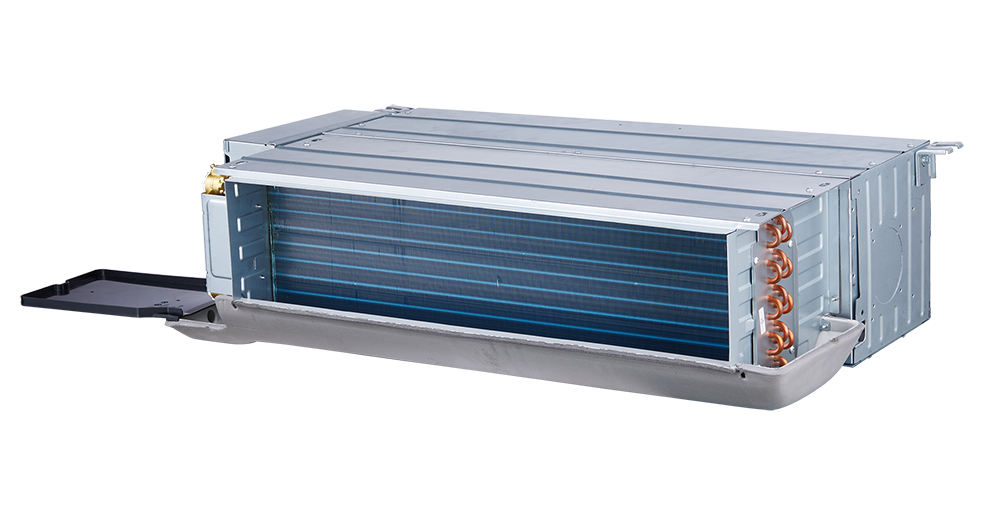

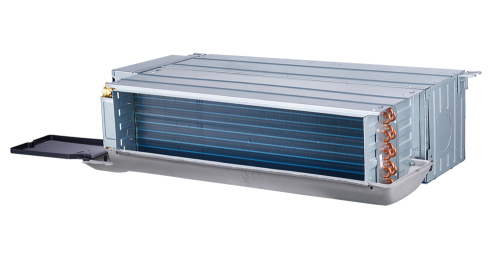

New generation of ducted fan coil units with a coil featuring a larger exchange area and a more compact design, with a maximum height of 243 mm. The new electronics allows multiple control options.

New electronic wall controller with multiple options.

Possibility to control the DC fan via 0–10 V input with 7 speeds (optional expansion card required).

Higher capacity for any type of installation.

The DC fan reduces energy consumption by up to 70%.

Minimal temperature fluctuation, lower noise level, and increased comfort.

Parameters

Type	Cooling Capacity min./max. (kW)	Heating Capacity min./max. (kW)	Energy Class	Indoor Unit Sound Pressure Level (dB(A))	Refrigerant	Power Supply	Recommended circuit breaker	Dimensions mm (Width/Heigh/Depth)
KFC-PD-2T-300D3	2,21/3,35	2,51/3,95	-	22,5	N/A (hydronic system)	1f/230V	16A / type C	972/240/482
KFC-PD-2T-500D3	2,97/4,55	2,9/4,98	-	31	N/A (hydronic system)	1f/230V	16A / type C	1107/240/482
KFC-PD-2T-600D3	3,66/5,85	4,21/6,9	-	34	N/A (hydronic system)	1f/230V	16A / type C	1202/240/482
KFC-PD-2T-700D3	5,09/6,5	5,81/7,6	-	40	N/A (hydronic system)	1f/230V	16A / type C	1377/240/482
KFC-PD-2T-1000D3	4,97/9,05	5,41/11	-	34	N/A (hydronic system)	1f/230V	16A / type C	1567/240/482
KFC-PD-2T-1400D3	9,77/11,11	10,59/12,67	-	46,5	N/A (hydronic system)	1f/230V	16A / type C	2097/240/482

Files

User manual

Manual EN, Wired Controller - KC-FCD2, KC-FCD2-M.pdf
Návod na obsluhu a inštaláciu SK - KCT-04 SR.pdf
Manual EN, Wired Controller - KCT-04 SR.pdf
Manual EN - Ducts 2 Pipes D3.pdf
Návod na obsluhu a inštaláciu SK - Ducts 2 Pipes D3.pdf
Manual EN, installation manual - Ducts 2 Pipes D3.pdf

Product sheet

Product Sheet - Ducts 2 Pipes D3.pdf

Declaration of conformity

Declaration of Conformity - KC-FCD2, KC-FCD2-M.pdf
Declaration of Conformity - Ducts 2 Pipes D3.pdf
