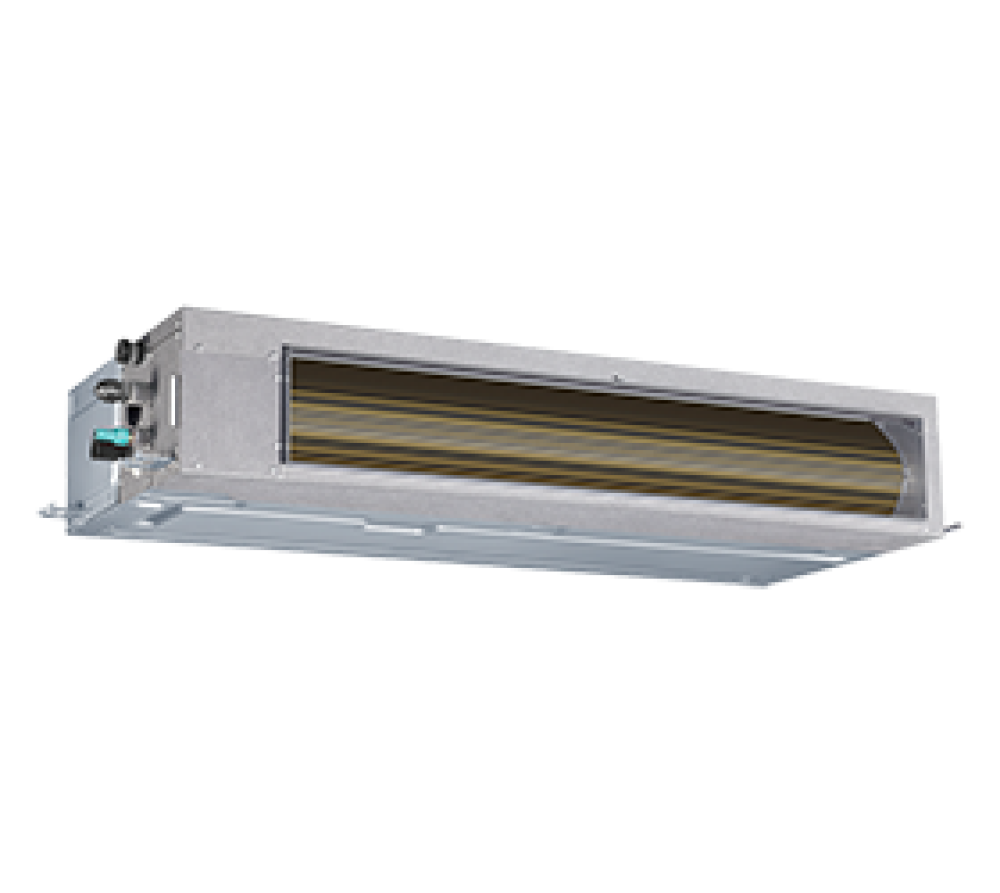

KAYSUN Mini Amazon Hybrid Ducts

Residential

The ducts for the Mini Amazon series are specially designed to be integrated into hybrid systems of VRF and hydraulic modules. With reduced dimensions and available pressure of up to 160 Pa, they are suitable for all kinds of applications.

Available pressure up to 160 Pa.

Standard height 199/245 mm.

Constant air flow technology.

Condensate pump as standard.

Quiet operation.

Parameters

Type	Cooling Capacity (kW)	Heating Capacity (kW)	Air flow (m³/h)	Indoor Unit Sound Pressure Level (dB(A))	Refrigerant	Power Supply	Recommended circuit breaker	Dimensions mm (Width/Heigh/Depth)
KPDF-22 DR5.0H	2,2	2,5	314	22	R-32	1f/230V	2A / type C	653/199/470
KPDF-28 DR5.0H	2,8	3,2	351	22	R-32	1f/230V	2A / type C	653/199/470
KPDF-36 DR5.0H	3,6	4	414	25	R-32	1f/230V	2A / type C	803/199/470
KPDF-56 DR5.0H	5,6	6,3	580	27	R-32	1f/230V	2A / type C	1003/199/470
KPDF-71 DR5.0H	7,1	8	763	29	R-32	1f/230V	2A / type C	1203/199/470
KPDF-90 DR5.0H	9	10	1030	28	R-32	1f/230V	2A / type C	1160/245/770
KPDF-112 DR5.0H	11,2	12,5	1417	28	R-32	1f/230V	4A /type C	1510/245/770
KPDF-140 DR5.0H	14	14	1568	29	R-32	1f/230V	4A /type C	1510/245/770

Files

User manual

Manual EN - Polar.pdf
Manual EN - Wall Controller KCTAQ-03.pdf
Manual EN - Mini Amazon Hybrid Duct (Medium pressure).pdf
Manual EN - Mini Amazon Hybrid Duct (Low pressure).pdf
Návod na obsluhu a inštaláciu SK -KCT-04 SR.pdf
Manual EN, Wired Controller - KCT-04 SR.pdf

Product sheet

Product Sheet - Polar.pdf
Product Sheet - Mini Amazon Hybrid Duct.pdf

Declaration of conformity

Declaration of Conformity - Polar.pdf
Declaration of Conformity - Mini Amazon Hybrid Duct.pdf
