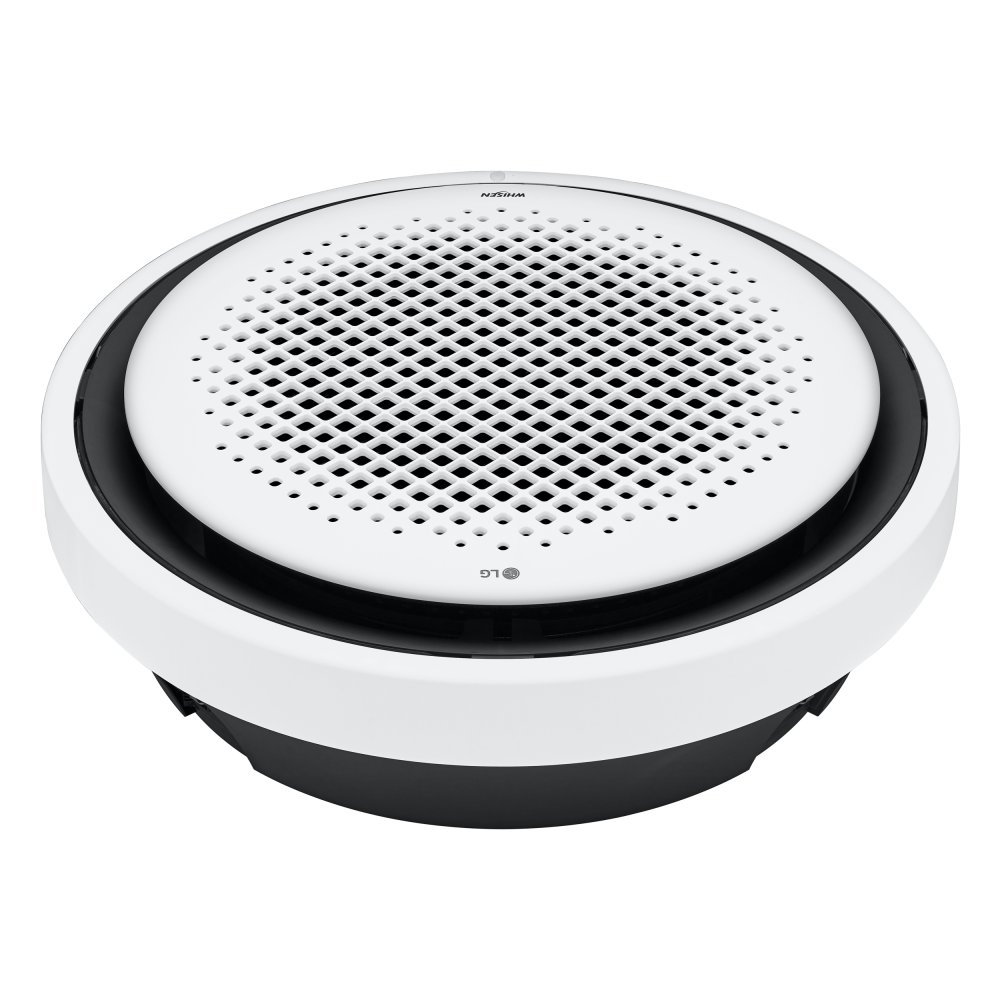

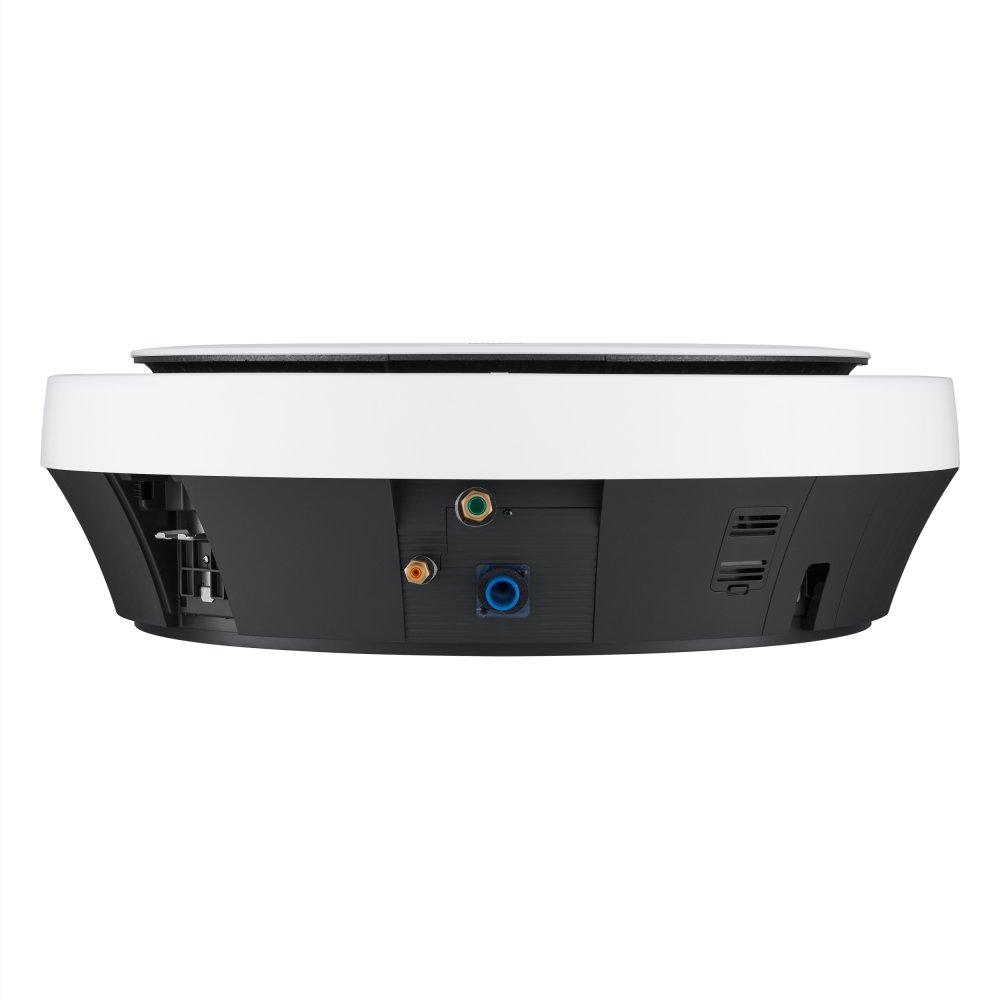

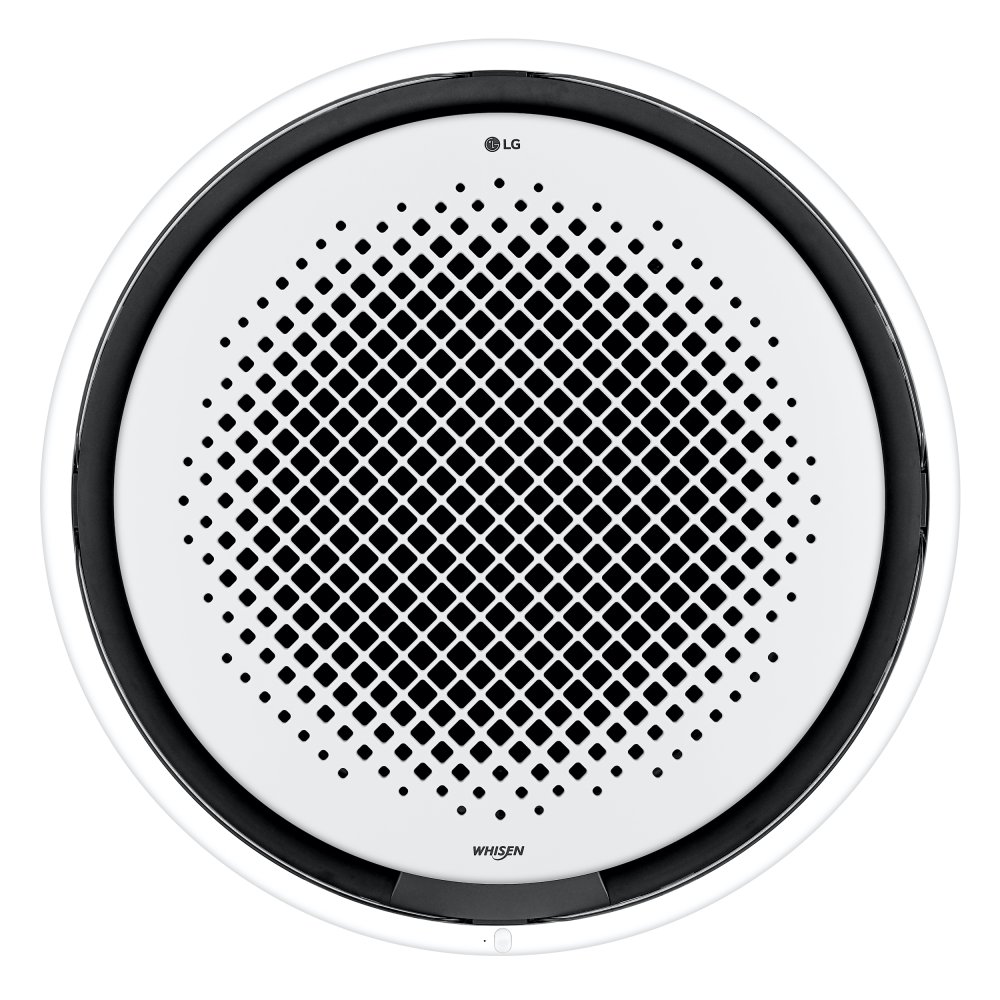

LG Round cassette unit

Commercial

LG round cassette units are modern ceiling-mounted air conditioning systems with unique 360° airflow, ensuring perfectly even comfort throughout the entire room without cold or warm spots. They are an ideal solution for larger commercial spaces, shops, restaurants, showrooms, and open-space offices.


  • 360° circular airflow – even air distribution without blind spots.
  • 4 independently controlled vanes – flexible airflow direction adjustment.
  • High airflow volume – fast and efficient cooling and heating for larger spaces.
  • Quiet operation – low noise level suitable for commercial environments.
  • Energy-efficient operation – optimized power consumption thanks to inverter technology.
  • Modern round design – elegant solution that blends seamlessly into the ceiling.
Parameters
Indoor Unit Outdoor Unit (1f / 3f) Cooling Capacity (kW) Heating Capacity (kW) Energy Class Indoor Unit Sound Pressure Level (dB(A)) Refrigerant Power Supply Recommended circuit breaker (1f / 3f) Outdoor Temperature Range for Cooling Min./Max. (°C) Outdoor Temperature Range for Heating Min./Max. (°C)
UT36F.NY0 UUD1.U30 / UUD3.U30 11 12,2 A++/A+ 47 R-32 1f/230V / 3f/400V 25A / typ C / 16A / typ C -15 / 48 °C -20 / 18 °C
UT48F.NY0 UUD1.U30 / UUD3.U30 13,4 15,5 A++/A+ 49 R-32 1f/230V / 3f/400V 40A / typ C / 20A / typ C -15 / 48 °C -20 / 18 °C
