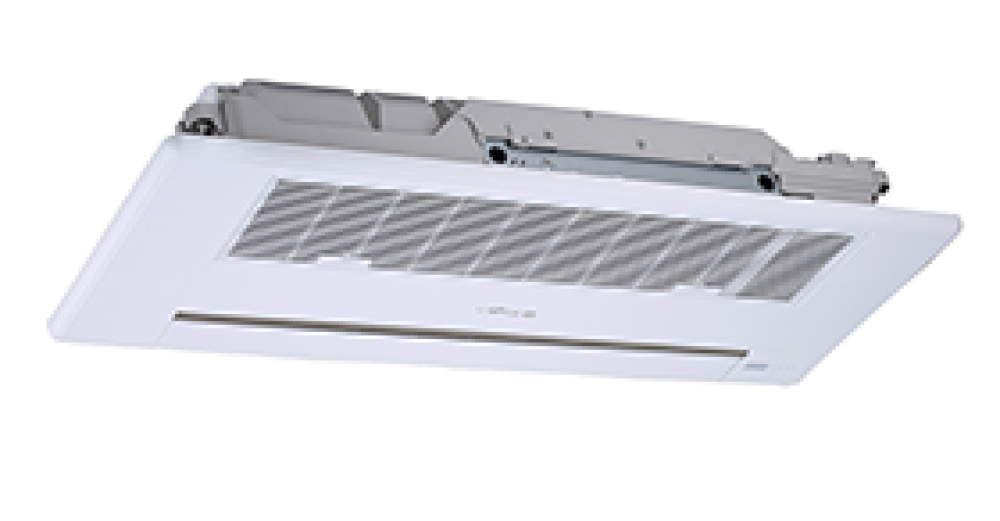

KAYSUN Amazon One Way Cassette
Commercial
Units featuring a compact, light design, making the installation of the unit much easier. Thanks to its contained profile of only 153 mm, depending on the capacity, they are ideal to install in very shallow false ceilings.
- Very compact unit.
- Quiet operation.
- 0.5°C/1°C setting temperature adjustment.
- Multiple steps vertical swing.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Indoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Dimensions mm (Width/Heigh/Depth) |
|---|---|---|---|---|---|---|---|---|
| KCOF-22 DN5.0 | 2,2 | 2,6 | A++ | 22 | R-410A/R-32 | 1f/230V | 1A / type C | 1054/153/428 |
| KCOF-36 DN5.0 | 3,6 | 4 | A++ | 30 | R-410A/R-32 | 1f/230V | 1A / type C | 1054/153/428 |
| KCOF-71 DN5.0 | 7,1 | 8 | A++ | 35 | R-410A/R-32 | 1f/230V | 1A / type C | 1275/189/452 |
Files
User manual
Manual EN - Swimming Pool HP KSWP.pdfManual EN, wired controller - Swimming Pool HP KSWP.pdf
Manual En - One Way Cassette.pdf
Manual EN, Remote Controller - KI-05.pdf
Návod na obsluhu a inštaláciu SK - KI-05.pdf
Product sheet
Product Sheet - Swimming Pool HP KSWP.pdfProduct Sheet - One Way Cassette.pdf
Declaration of conformity
Declaration of Conformity - Swimming Pool HP KSWP.pdfDeclaration of Conformity - One Way Cassette.pdf
