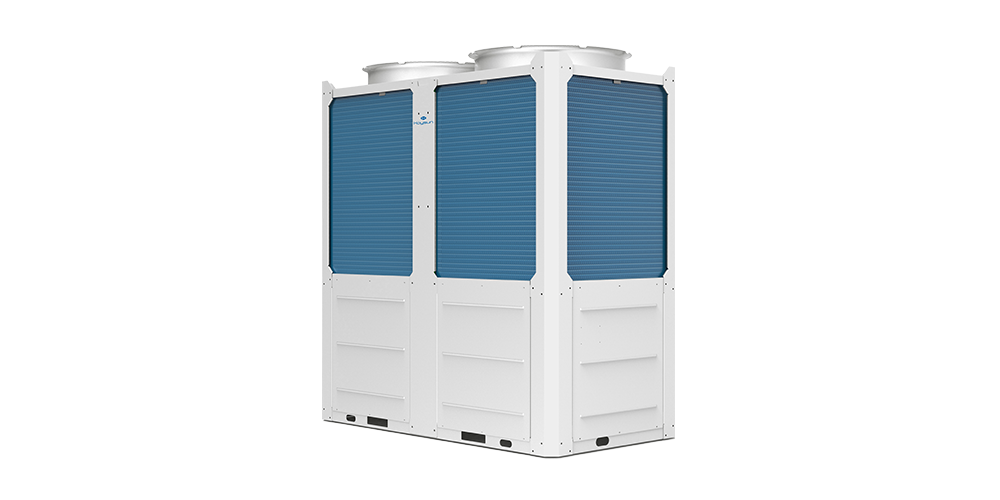

KAYSUN Modular Full DC Invereter Chillers
Commercial
The second part of the Kaysun Full DC Inverter chiller range is available in modules from 75 to 180 kW. With brushless Full DC Inverter compressors that provide a high degree of stability and high energy efficiency. The units are very compact and are designed to speed up maintenance. Up to 4 modules can be combined, with a total capacity of 360 kW.
- Option with hydraulic module – on/off pump.
- Compact design.
- Modular operation management, up to 16 units in cascade.
- High seasonal efficiency.
- Refrigerant R32 – GWP = 675.
- Full inverter technology with scroll compressors.
Parameters
| Type | Cooling Capacity (kW) | Heating Capacity (kW) | Energy Class | Outdoor Unit Sound Pressure Level (dB(A)) | Refrigerant | Power Supply | Recommended circuit breaker | Water flow rated (m³/h) |
|---|---|---|---|---|---|---|---|---|
| KEM-90 DRS5 | 82 | 90 | A++ | 65 | R-32 | 3f/400V | 100A MCCB (3P) type C | 15 |
| KEM-90 DRS5 KH | 82 | 90 | A++ | 65 | R-32 | 3f/400V | 100A MCCB (3P) type C | 15 |
