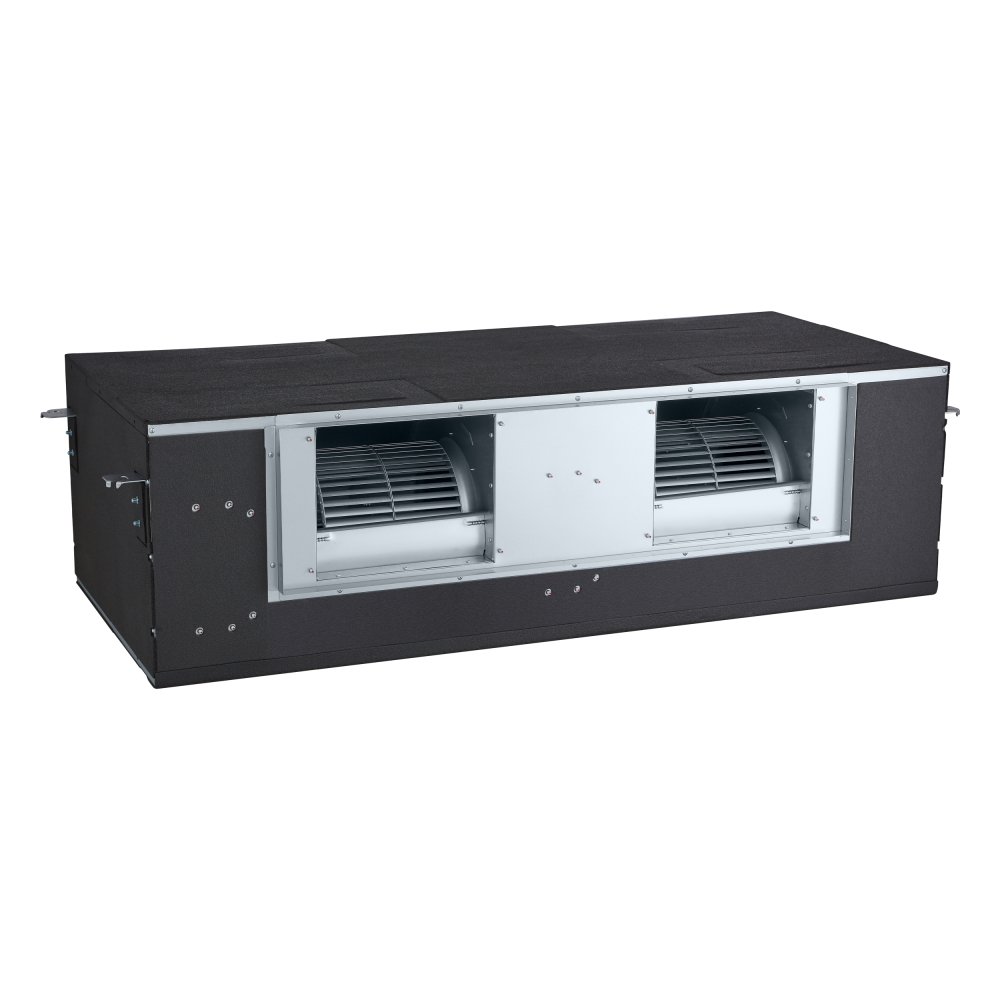

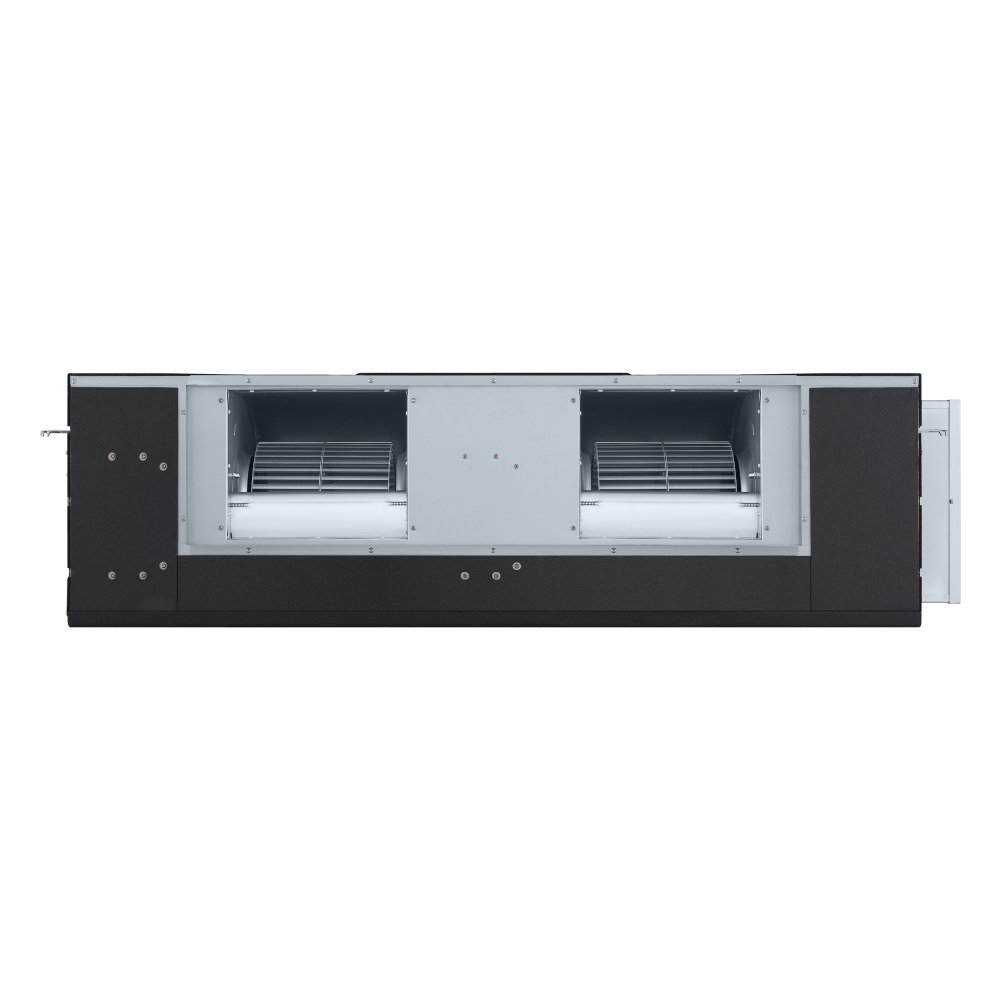

LG High-pressure ducted unit

Commercial

LG high static duct units are designed for concealed installation and long ductwork systems. They are ideal for large commercial spaces where air needs to be distributed over long distances through extensive duct networks.


  • High static pressure – suitable for long duct systems and large buildings.
  • High airflow volume – efficient cooling and heating for large spaces.
  • Flexible installation – horizontal design for concealed ceiling installation.
  • Even air distribution – air distribution through ductwork to multiple rooms.
  • DUAL Inverter technology – high efficiency with low energy consumption.
  • Quiet operation – optimized for commercial environments with low noise requirements.
Parameters
Indoor Unit Outdoor Unit Cooling Capacity (kW) Heating Capacity (kW) Energy Class Indoor Unit Sound Pressure Level (dB(A)) Refrigerant Power Supply Recommended circuit breaker Outdoor Temperature Range for Cooling Min./Max. (°C) Outdoor Temperature Range for Heating Min./Max. (°C)
UB200.N80 UU200W.U80A0 20 23 - 45 R-32 3f/400V 32A / type C -20 / 48 °C -18 / 18 °C
UB250.N80 UU250W.U80A0 23 25 - 45 R-32 3f/400V 32A / type C -20 / 48 °C -18 / 18 °C
UB70.N95 UU70W.U34 19 23 - 43 R410A 3f/400V 32A / type C -20 / 48 °C -18 / 18 °C
UB85.N95 UU85W.U74 22,4 27 - 43 R410A 3f/400V 32A / type C -20 / 48 °C -18 / 18 °C
